Welcome: Laizhou Machinery Group
We are NO.1 factory of the best off road caravan in China. Our offroad caravans with ensuite includes 10ft, 12ft, 13ft, 14ft, 15ft, 16ft, 17ft, 21ft and 22ft. We exports about 5000 units of our off road caravans to Australia and USA every year. Welcome your further inquiry regarding more HD pictures and videos of all our models, please email to us by [email protected] or talk with us by whatsapp 18663813961

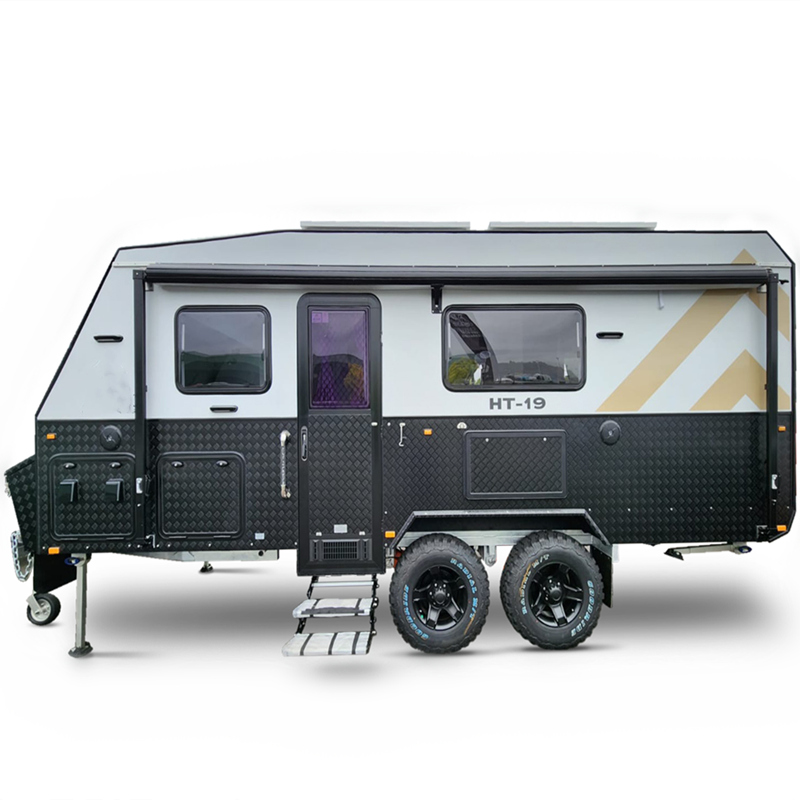

Model No.: HT19
GENERAL
♦ 19’ Offroad Caravan
♦ 3 Berth
♦ 1 x king size high-density foam mattress
♦ Convertible L-shape lounge (king single equivalent)
♦ Mattress size – 2000mm L x 1450mm W x 220mm H
♦ Galvanised chassis + external aluminium composite panel
♦ Combination of welded aluminum 50mm x 25mm RHS and 25mm x 25mm square aluminium alloy
WEIGHTS & RATINGS
♦ Tare weight Approx. 2940kg
♦ Towball weight Approx. 250kg
♦ ATM Rating 3500kg
♦ Payload Approx. 560kg
DIMENSIONS – with Aircon
♦ Open – 7700mm L x 5540mm W x 3140mm H
♦ Closed (Travel Size) – 7700mm L x 2340mm W x 3140mm H
♦ Annex size – 5.7m x 2.4m (OPTIONAL)
♦ Ensuite tent – Approx. 1.2m x 0.9m
CHASSIS
♦ 150mm x 50mm – Q460 galvanised steel RHS
♦ Cruisemaster™ DO35 hitch
♦ ARK XO750 Jockey Wheel
♦ 16 x 7.5 6/139.7 aluminium alloy wheels fitted with 265/75 R16 Goodride radial mud terrain, 1 x spare wheel & rear mounted external step/ service ladder
♦ Tandem X-TRACK independent coil spring suspension with 2 x TOUGH TRAX HD shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy duty lockable and adjustable drop down
♦ KOJACK 4000kg hydraulic jack with 150mm extention & integrated jacking points
EXTERIOR
♦ 4.8m manual roll-out awning with integrated lighting
♦ OPTIONAL full annex, enclosed roof, walls, floor and draft skirt
♦ 2 x 9kg gas cylinder holders with LCC27 pigtail connector
♦ 2 x 20L jerry can holders
♦ 2 x 80L fresh water & 1 x 80L grey water
♦ 12V electric marine diaphragm pump
♦ External Slide out stainless steel body with gas hob cooktop & washboard sink with plumbed hot & cold water supply
♦ Front-mounted chequer plate 3 bay storage box with forward-facing mud flap protection
♦ Fridge Slide – 1040mm L x 530mm W x 480mm H (External fridge not included)
♦ Hot/cold external shower includes wall-mounted ensuite tent
♦ Wall-mounted drop-down servery table
INTERIOR
♦ Internal modern oak timber style laminated bench & counter tops with black matte finished washboard sink & tapware
♦ Dometic CTS4110 Cassette toilet + hot & cold plumbed shower with wash basin.
♦ Tinted slimline double glazed acrylic windows and double cassette blind with flyscreen and block-out
♦ Ensuite 12V roof hatch with fan and LED lighting and skylight over the bed with 12V lighting and double cassette blind
MAJOR APPLIANCES
♦ Truma Aventa comfort 2400W roof-mounted air conditioning system with integrated heat pump
♦ 14L Truma UltraRapid (gas-operated)
♦ 175L Thetford T2175C 12/24V compressor refrigerator
♦ Internal Cooker – Thetford Triplex MK3 Oven/Grill with 3-burner hotplates & supplied 240V A grade crystal plate portable induction cooktop
♦ External Cooker – Stainless steel 3-burner gas hob cooktop with glass lid
♦ European made AutoTerm Air2D 2kW diesel heater with LED display & 12L diesel tank.
♦ 2.5kg capacity wall mounted front loader washing machine
♦ Built-in 20L 700W Microwave
SAFETY FEATURES
♦ Trail-Assure™ BG-5000 – electronic stability control with asymmetric braking (off-road ready)
♦ 2.4GHz digital wireless rear view camera + 7″ portable monitor
♦ Coupling lock
ELECTRICAL
♦ 600Ah of LiFePRO+® 12V Lithium Iron Phosphate battery capacity
♦ 7 x 175W solar panels (1225W total) with SolarAir™ – Thermal Management solar panel mounting system
♦ Projecta INVCHR3 – 180A 5-stage lithium battery charger with 3000W auto transfer
♦ 3 x Projecta IDC25X – 25A 5-stage Intelli-Charge 9-32V lithium DC/ solar battery chargers
♦ Projecta BM500-BT – battery monitor with Bluetooth connectivity
♦ Projecta INVCHR3 – 12V 3000W pure sine wave inverter with automatic AC transfer
♦ Lighting Internal – 12V LED lighting throughout with wireless switching
♦ Lightning External – 12V LED lighting throughout, awning and offside white and yellow (Bug Light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights
♦ 12-pin flat
♦ Stereo head unit with internal & external speakers
♦ 12V compatibility, USB and full motion TV bracket
♦ Milenco Power 900L omnidirectional TV antenna
♦ 2 x Caframo Sirocco II 12V wall-mounted 3-speed fan
INTERNAL POWER OUTLETS
♦ 4 x 12V accessory sockets
♦ 3 x 5V dual USB charging ports (1A & 2A split)
♦ 1 x F-type TV outlet
♦ 5 x 240V GPOs
♦ 2 x 10W wireless benchtop built-in phone chargers
EXTERNAL POWER OUTLETS
♦ 1 x Anderson plugs
♦ 2 x 12V accessory socket
♦ 1 x F-type TV outlet
♦ 1 x 240V GPOs
Welcome your further inquiry regarding more HD pictures and videos of all our models, please email to us by [email protected] or talk with us by whatsapp 18663813961.
