15Ft Family Off Road Caravan (5 Berth)

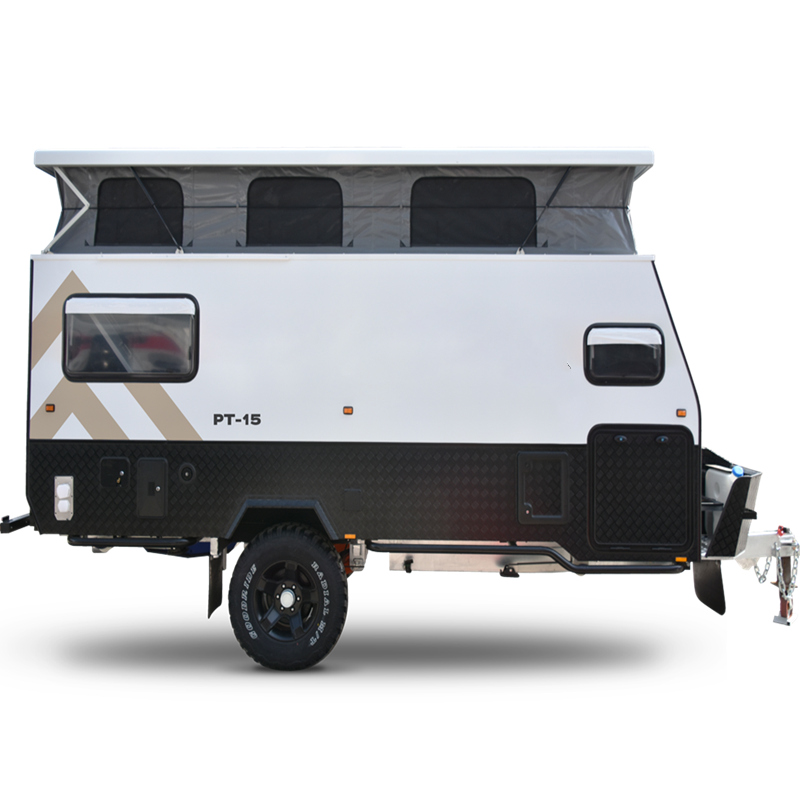

PT-15 15ft 5 Berth Hybrid Off-Road Caravan

LZM is an experienced off-road caravan manufacturer and exporter in China, supplying caravans to international markets including Australia, New Zealand and the United States. Our factory manufactures more than 3,000 off-road caravans annually for these markets.

The PT-15 is a 15ft hybrid off-road caravan designed for family touring, camping and off-grid travel. With sleeping capacity for up to 5 people, it combines an expandable living area, independent suspension, internal ensuite, external slide-out kitchen, 300Ah AGM battery capacity, solar power and hot water system in a compact off-road caravan.

Model: PT-15

Dimensions & Weight

• Closed Size with AC: 2265mm W × 6500mm L × 2590mm H

• Opened Size with AC: 5325mm W × 7030mm L × 3090mm H

• Style: 15ft Hybrid Off-Road Caravan

• Berth: 5

• Towball Weight: 180kg

• Tare Weight: Approx. 2290kg

• ATM: 3000kg

Chassis, Suspension & Towing

• Chassis: 150mm × 50mm × 3mm, hot-dip galvanised inside and out

• Drawbar: 150mm × 50mm × 4mm, hot-dip galvanised inside and out

• Body Construction: Combination of 75mm × 25mm RHS, 50mm × 25mm RHS and 25mm × 25mm square aluminium alloy with composite panels

• Structure: Fully welded frame and chassis

• Finish: Galvanised chassis with aluminium composite panels

• Stone Guard: Integrated central aluminium toolbox with outer stone deflectors

• Suspension: Independent trailing-arm suspension with 4 shock absorbers and coil springs

• Wheels & Tyres: 265/75 R16 Goodride radial mud-terrain tyres

• Coupling: DO35

• Brakes: 12-inch electric brakes with handbrake and breakaway system

• Jockey Wheel: 10-inch folding jockey wheel

• Stabiliser Legs: 4 heavy-duty lockable and adjustable drop-down legs

• Light Connection Plug: 7-pin round or 7-pin flat connection available

Kitchen, Water & Bathroom

• External Kitchen: Stainless steel slide-out kitchen with Thetford 4-burner stove and sink

• Water Delivery: 12V electric water system

• Fresh Water: 120L tank

• Grey Water: 80L tank

• Hot Water System: Truma UltraRapid hot water system

• Internal Ensuite: Thetford toilet

• Gas Cylinder Holders: 2 × 9kg

• Jerry Can Holders: 2 × 20L

Electrical & Off-Grid Equipment

• Battery: 3 × 100Ah deep-cycle AGM batteries, 300Ah total

• Solar: 3 × 100W solar panels, 300W total

• Battery Charger: Projecta 35A 7-stage IC3500 battery charger with remote display

• Inverter: Projecta IM1000 1000W inverter

• Outlets: Multiple 240V double-pole outlets throughout

Interior & Exterior Equipment

• Awning: 4m 12V electric awning

• Mattress: 200mm custom Queen innerspring mattress

• Sound System: Kenwood head unit with internal and external speakers

• Optional Equipment: Air conditioner, refrigerator and diesel heater

Weight Note: All stated weights exclude gas bottles, jerry cans, annex walls and annex roof.
