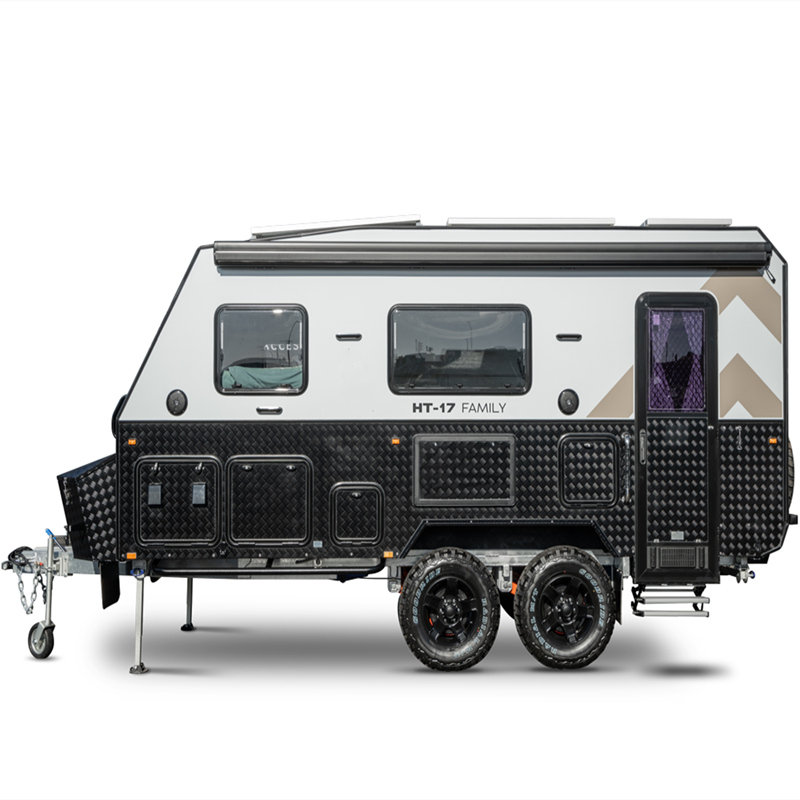

Off Road Caravan (17Ft, 5Berth)

We are NO.1 factory of the best off road caravan in China. Our offroad caravans with ensuite includes 9ft,10ft, 12ft, 13ft, 14ft, 15ft, 16ft, 17ft, 21ft and 22ft. We exports about 5000 units of  our off road caravans to Australia and USA every year. Welcome your further inquiry regarding more HD pictures and videos of all our models, please email to us by [email protected] or talk with us by whatsapp 8618663813961

Model No.: HT-17 Family

GENERAL

♦ 17’ Offroad Caravan
♦ 5 Berth
♦ 1 x custom pillow-top king size innerspring mattress set
♦ 2 x single foam bunks and a convertible dinette
♦ Bed – 2120mm L x 1530mm W x 180mm H
♦ Top Bunk (set) – 1800mm L x 630mm x 100mm H
♦ Bottom Bunk – 1760mm L x 670mm x 100mm H
♦ Galvanised chassis + aluminium composite panel throughout
♦ Combination of welded aluminium 50mm x 25mm RHS and 75mm x 25mm RHS and 25mm x 25mm square aluminium alloy

WEIGHTS & RATINGS

♦ Tare weight Approx. 2800kg
♦ Towball weight Approx. 200kg
♦ ATM Rating 3500kg
♦ Payload Approx. 700Kg

DIMENSIONS

♦ Open – 7010mm L x 4405mm W x 3090mm H
♦ Closed (Travel Size) – 7010mm L x 2320mm W x 3090mm H
♦ Annex size – 5m x 2m
♦ Ensuite tent – 1.2m x 1m

CHASSIS

♦ 150mm x 50mm – Q345 galvanised steel RHS drawbar
♦ Cruisemaster™ DO35 hitch
♦ ARK XO750 Jockey Wheel
♦ 16 x 7.5 6/139.7 aluminium alloy wheels fitted with 265/75 R16 Goodride radial mud terrain & 2 x spare wheel
♦ X-TRACK independent coil spring suspension with 2x TOUGH TRAX HD shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy duty lockable and adjustable drop down stabiliser legs
♦ KOJACK 4000kg hydraulic jack with 150mm extention & integrated jacking points

EXTERIOR

♦ 4.35m 12V electric cassette awning
♦ Full annex, enclosed roof, walls, floor and draft skirt
♦ 2 x 9kg gas cylinder holders with LCC27 pigtail connector
♦ 2 x 20L jerry can holders
♦ 2 x 80L fresh water tank & 1 x 80L grey water tank
♦ 12V electric marine diaphragm pump
♦ External Slide out stainless Steel body with gas hob cooktop & washboard sink with plumbed hot & cold water supply
♦ Front-mounted chequer plate toolbox with forward-facing mud flap protection
♦ Fridge Slide – 1150mm L x 550mm W x 485mm H
♦ Hot/cold external shower includes wall-mounted ensuite tent
♦ Wall-mounted drop-down servery table & passthrough storage hatch

INTERIOR

♦ Internal Laminated benchtop with glass lid plumbed sink and gas hob cooktop
♦ Thetford C400 cassette toilet + hot & cold plumbed shower
♦ Double acrylic glazed windows and double cassette blind with flyscreen and block-out
♦ Ensuite 12V roof hatch with fan and LED lighting and skylight over the bed with 12V lighting and double cassette blind

MAJOR APPLIANCES

♦ Truma Aventa comfort 2400W roof-mounted air conditioning system with integrated heat pump
♦ 14L Truma UltraRapid (gas-operated)
♦ 150L Thetford T1152C 12/24V compressor refrigerator
♦ Internal Stainless steel 3-burner gas hob cooktop with glass lid
♦ External Stainless steel 3-burner gas hob cooktop with glass lid
♦ 2KW diesel air heater with variable control and 10L fuel tank
♦ Built-in 20L 700W Microwave

SAFETY FEATURES

♦ Trail-Assure™ BG-5000 – electronic stability control with asymmetric braking (off-road ready)
♦ 2.4GHz digital wireless rear view camera + 7″ portable monitor
♦ coupling lock

ELECTRICAL

♦ 2 x LiFePRO+® 12V 200Ah Lithium Iron Phosphate battery
♦ 5 x 175W solar panels (875W total)
♦ Projecta INVCHR2 -120A 5-stage battery charger with 2000W auto transfer inverter
♦ 2 x Projecta IDC25L – 25A 5-stage Intelli-Charge 9-32V lithium DC/ solar battery chargers
♦ Projecta BM500-BT – battery monitor with Bluetooth connectivity
♦ Projecta INVCHR2 – 12V 2000W pure sine wave inverter with automatic AC transfer
♦ Internal Wireless switching 12V LED lighting throughout with LED-Strip ambient lighting
♦ External 12V LED lighting throughout, awning and offside white and yellow (Bug Light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights
♦ 12-pin flat trailer connector
♦ Bluetooth stereo head unit with internal & external speakers
♦ HD LED TV with 12V compatibility, USB and full motion TV bracket
♦ Milenco Power 900L omnidirectional TV antenna
♦ 2 x Caframo Sirocco II 12V wall-mounted 3-speed fan

INTERNAL POWER OUTLETS

♦ 5 x 12V accessory sockets
♦ 4 x 5V dual USB charging ports (1A & 2A split)
♦ 1 x F-type TV outlet
♦ 6 x 240V double pole GPOs

EXTERNAL POWER OUTLETS

♦ 1 x Anderson plugs
♦ 3 x 12V accessory socket
♦ 1 x F-type TV outlet
♦ 1 x 240V double pole GPOs

Welcome your further inquiry regarding more HD pictures and videos of all our models, please email to us by [email protected] or talk with us by whatsapp 18663813961.
