17Ft Off Road Caravan (3 Berth, Double Bunk)

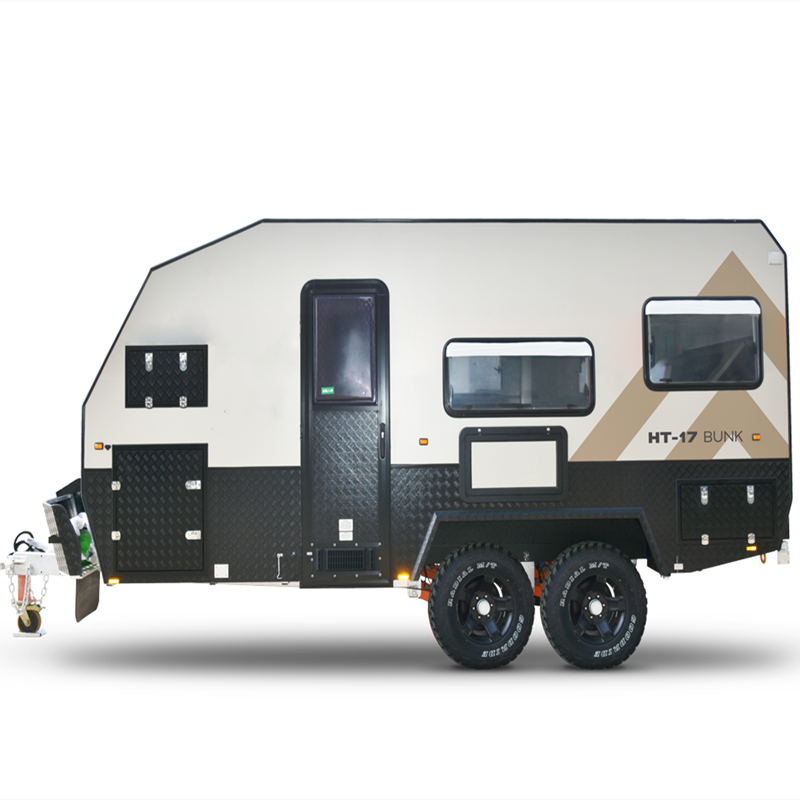

HT-17 Double Bunk 17ft 3 Berth Hybrid Off-Road Caravan

LZM is an experienced off-road caravan manufacturer and exporter in China, supplying caravans to international markets including Australia, New Zealand and the United States. Our factory manufactures more than 3,000 off-road caravans annually for these markets.

The HT-17 Double Bunk is a 17ft hybrid off-road caravan with sleeping capacity for up to 3 people. Designed for touring, camping and off-grid travel, it combines an expandable living area, independent suspension, internal ensuite, indoor and outdoor kitchens, 300Ah battery capacity, 300W solar power and a fully welded off-road chassis.

Model: HT-17 Double Bunk

Dimensions & Weight

• Closed Size with AC: 2365mm W × 7150mm L × 3040mm H

• Opened Size with AC: 5770mm W × 7655mm L × 3040mm H

• Style: 17ft Hybrid Off-Road Caravan

• Berth: 3

• Towball Weight: Approx. 220kg

• Tare Weight: Approx. 2800kg

• ATM: 3500kg

Chassis, Suspension & Towing

• Chassis: 150mm × 50mm × 3mm

• Drawbar: 150mm × 50mm × 4mm

• Body Construction: Aluminium composite panels with fully welded frame and chassis

• Stone Guard: Included with stone-tamer mudflaps

• Suspension: Independent trailing-arm suspension with 4 shock absorbers and coil springs

• Wheels & Tyres: 265/75 R16 Goodride radial mud-terrain tyres

• Coupling: DO35

• Brakes: 12-inch electric brakes with handbrake and breakaway system

• Jockey Wheel: 10-inch swing-up and lockable

• Stabiliser Legs: 4 heavy-duty lockable and adjustable drop-down legs

• Light Connection Plug: 12-pin flat as standard; 7-pin round or 7-pin flat available

Kitchen, Water & Bathroom

• Internal Kitchen: Thetford stainless steel burner stove with oven and grill

• External Kitchen: Slide-out stainless steel kitchen with Thetford Argent MK3 4-burner hob deluxe cooker

• Fresh Water: 2 × 80L tanks

• Grey Water: 80L tank

• Hot Water System: 14L Truma gas hot water system

• Internal Ensuite: Internal shower and Thetford toilet

• External Shower: External ensuite shower

• Gas Cylinder Holders: 2 × 9kg, including 2 gas cylinders supplied

• Jerry Can Holders: 2 × 20L

Electrical & Off-Grid Equipment

• Battery: 3 × 100Ah deep-cycle batteries, 300Ah total

• Solar: 3 × 100W solar panels, 300W total

• Inverter: Projecta 12V 1000W modified sine-wave inverter

• Outlets: Multiple 12V outlets and 2 × 240V outlets

Interior & Exterior Equipment

• Mattress: 200mm custom Queen innerspring mattress

• Microwave: Camec 240V microwave

• Range Hood: Camec 12V range hood

• Washing Machine: NCE 2.5kg washing machine

• Sound System: Kenwood head unit with internal and external speakers

• Optional Equipment: Air conditioner, refrigerator and diesel heater

Weight Note: All stated weights exclude gas bottles, jerry cans, annex walls and annex roof.
