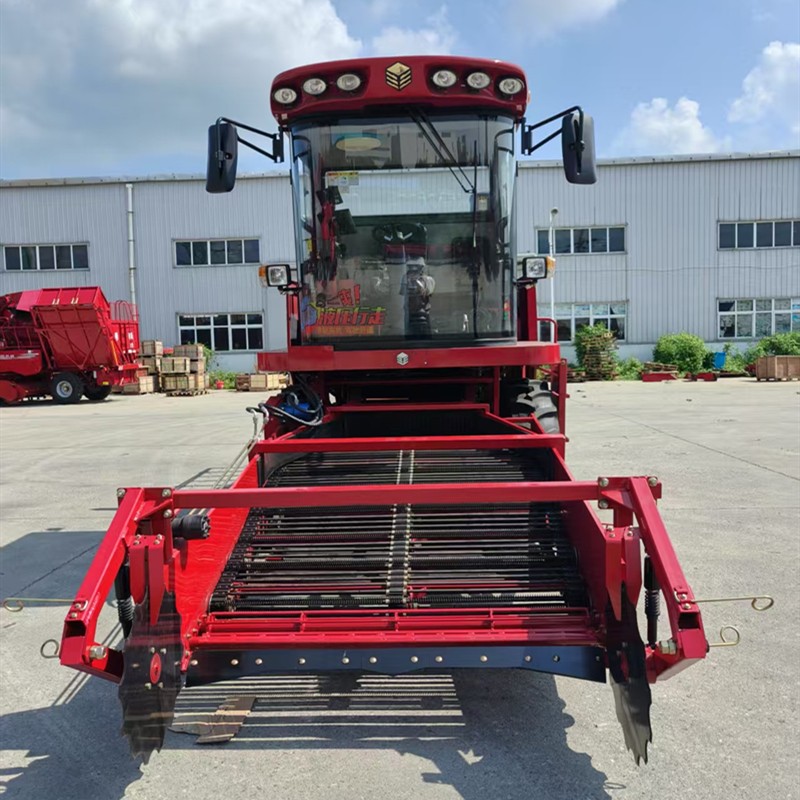

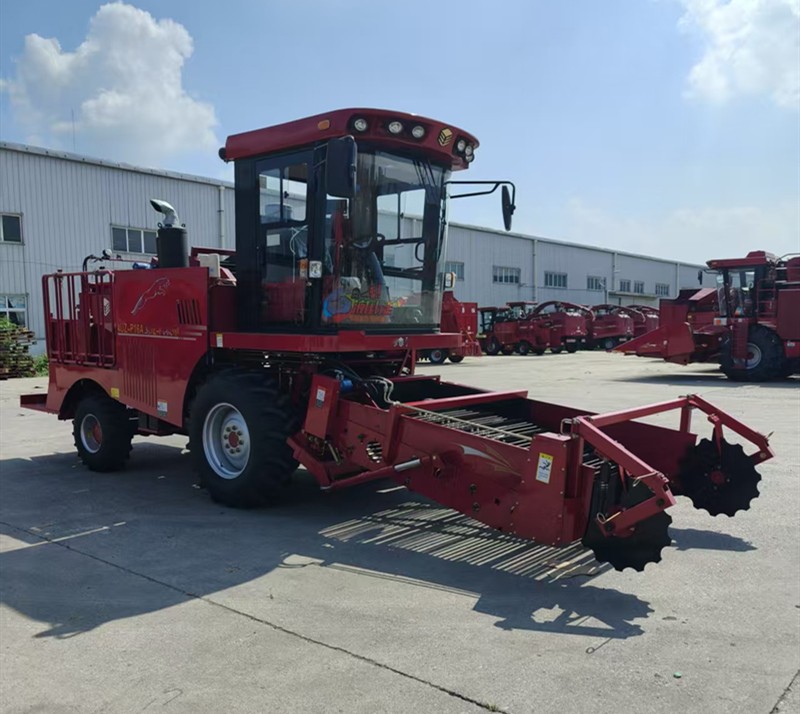

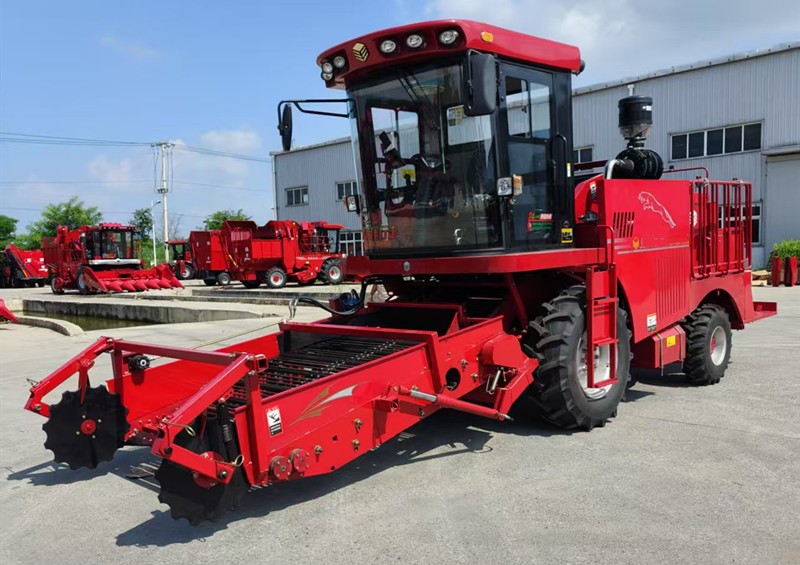

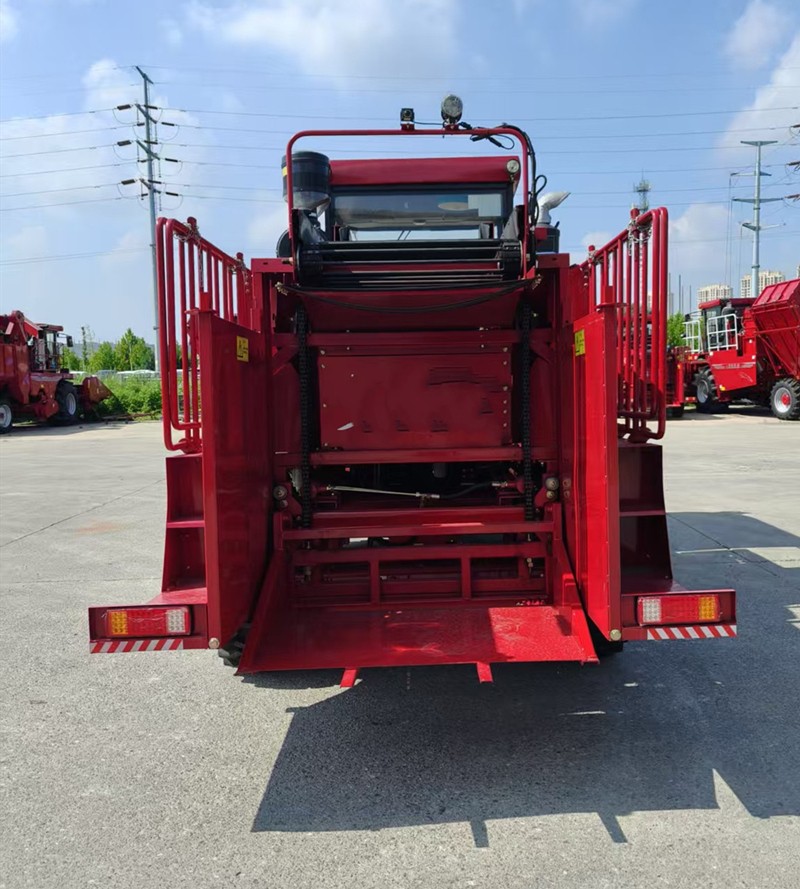

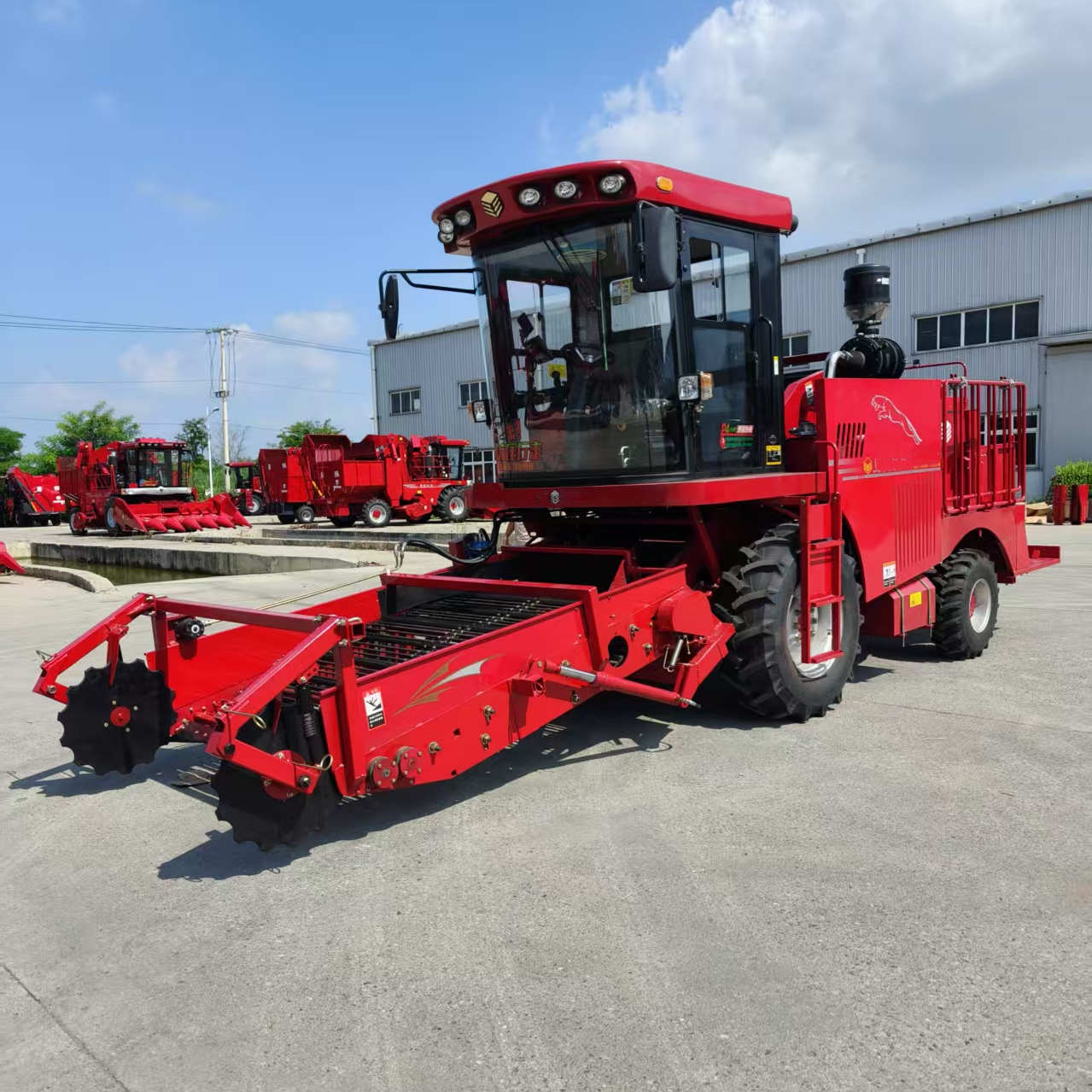

Combined Potato Harvester

We are the inventor of combined potatoes harvesters  in China. We have the best potato harvester for sale. It can harvest root crops such as potatoes, sweet potatoes, beets, lilies, taro, rehmannia, onions, etc. If you want to buy self propelled or combined potatoes harvester or want to know the best price of potatoes harvesters or onions harvester from Chinese countries, please inquiry us at once !

Technical Data:

Machine configuration: equipped with Yuchai 125 horsepower Euro 3 or 5 diesel engine

Vehicle hydraulic drive

Operation width: 1700mm

Drive mode: part-time four-wheel drive

Drive wheel tire specifications: 13.6-24

Steering wheel tire specifications: 10.0/75-15.3

Structural mass: 5500KG

Overall dimensions: length * width * height 7980*2580*3190 (mm)

Conveying device form: rod belt type grid screen

Pickup form: rod belt type grid screen + shaking wheel

Minimum ground clearance: 280 (mm)

Wheelbase: 2510 (mm)

Guide wheel track: 1790 (mm)

Drive wheel track: 1785 (mm)

Suitable soil: sandy soil, semi-sandy soil

Pure work efficiency: 3-5 acres per hourfixed speed: Yes

Speed closed loop automatic correction: Yes

Power type:  Gas-electric hybrid

Maximum climbing angle: 40 degrees

Maximum working angle: 15 degrees

Fuel tank volume: 8 liters
