Expandable Event Trailer Deployment Video
Watch how one operator expands or folds our hydraulic expandable event trailer in under 30 minutes under normal operating conditions.
LZM offers a complete range of expandable event trailers, mobile banquet halls and mobile banquet trailers, from compact mobile units to luxury banquet hall trailers, with different sizes, layouts and configurations available for various applications.
Our expandable event trailer can also be configured as a mobile pop-up event hall, pop-up party hall trailer or mobile event hall for weddings, corporate events, private parties, exhibitions and brand activations. The mobile event trailer can be transported as a compact unit and expanded on site into a large enclosed event space.

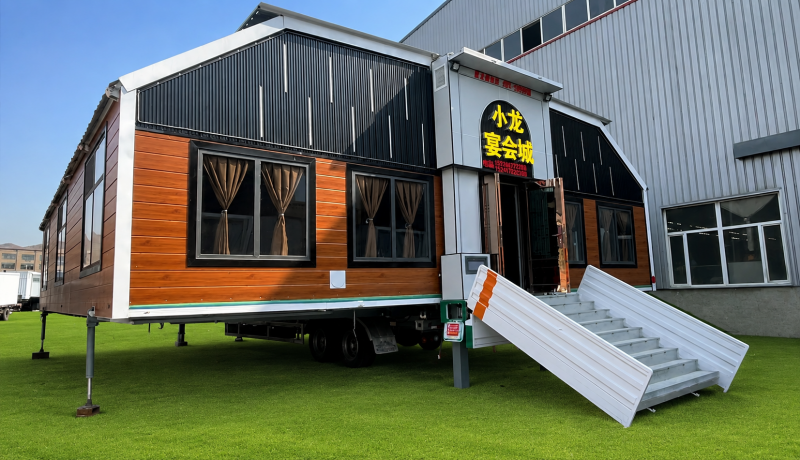

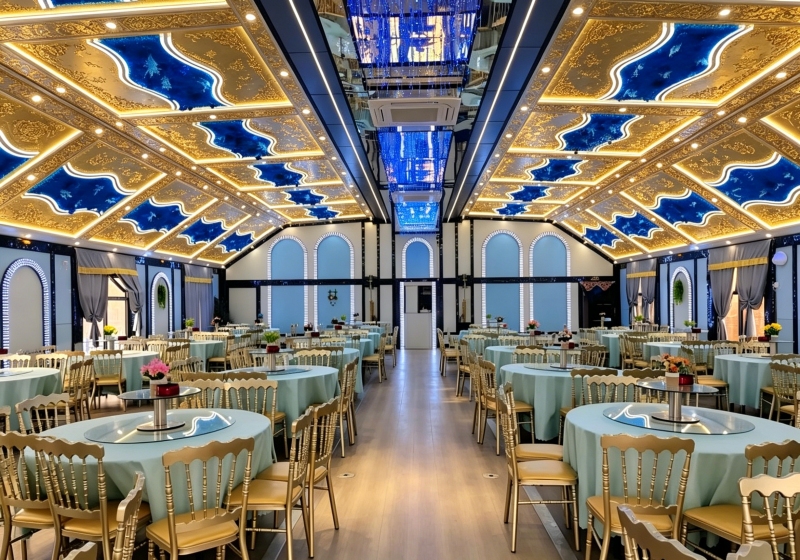

The LZM Luxury Expandable Event Trailer is a relocatable commercial event space designed for businesses and organizations that need rapid deployment, operational flexibility and premium presentation.
① Fast Deployment
One operator can expand or fold the trailer in under 30 minutes under normal operating conditions
② No Permanent Construction Required
Deploy premium business space without building a traditional structure (subject to local regulations).
③ Relocatable Investment
Move your business wherever new opportunities arise.
④ Fully Customizable
Interior layout, branding, lighting, decoration, kitchen and other options.
⑤ Multiple Industries
Wedding & Banquet, Corporate Events, Hospitality, Retail, Exhibitions, Sports, Tourism and Government Applications.
⑥ Global Export Experience
Successfully exported to: UAE. Saudi Arabia. USA. Mexico. Argentina. Bolivia. Nigeria. Mongolia and expanding to more countries.

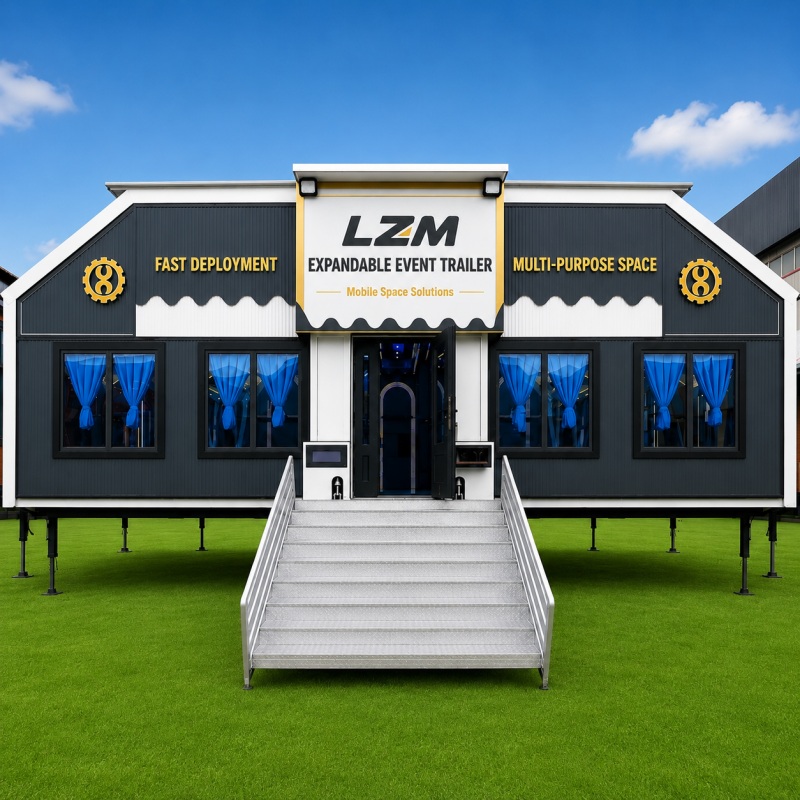

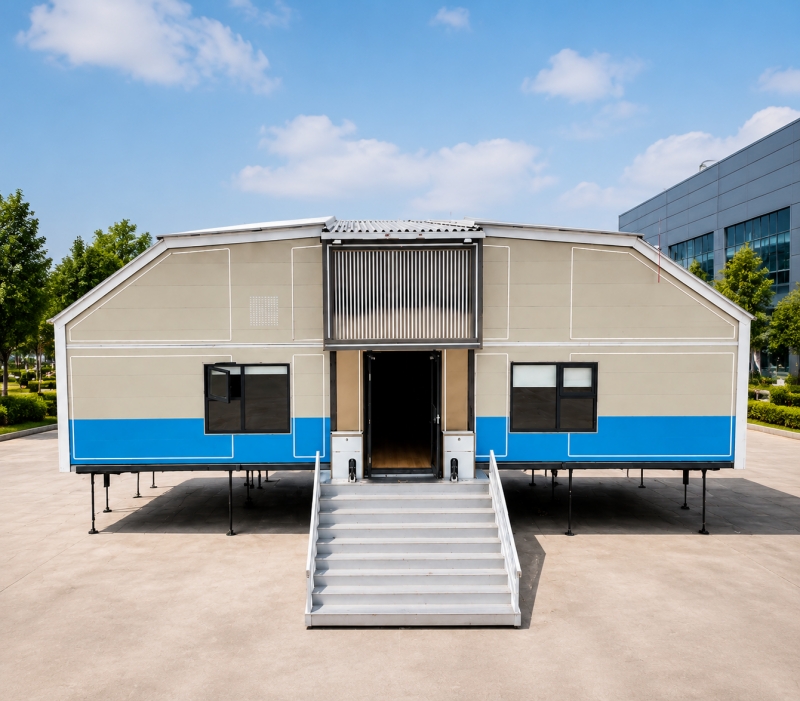

Front View
The front view highlights the spacious entrance design and expandable structure of the LZM event trailer.

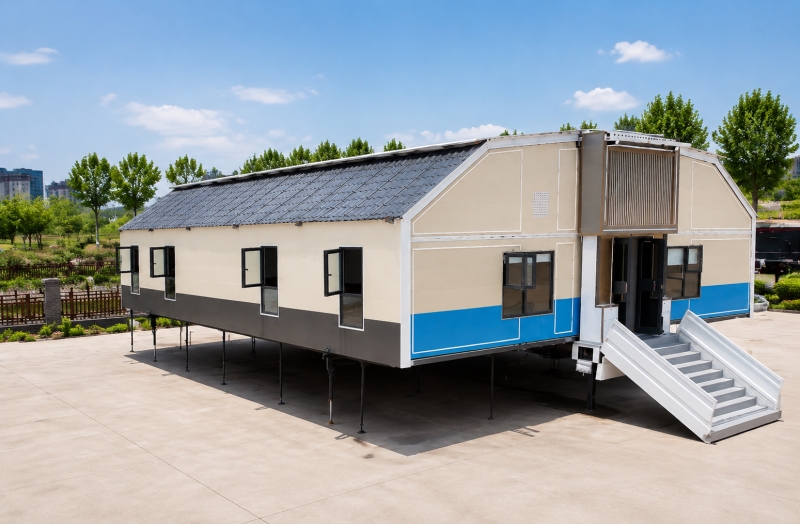

Side View
The side view shows the extended structure, support legs and mobile design of the expandable event trailer.

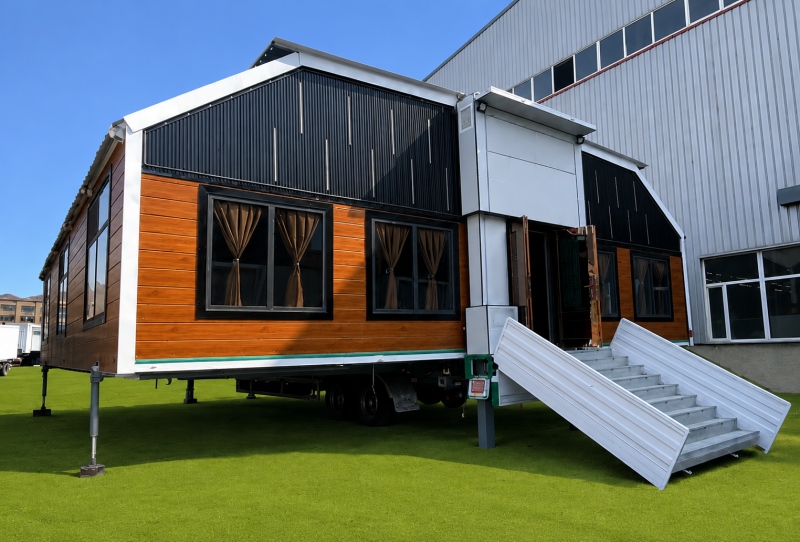

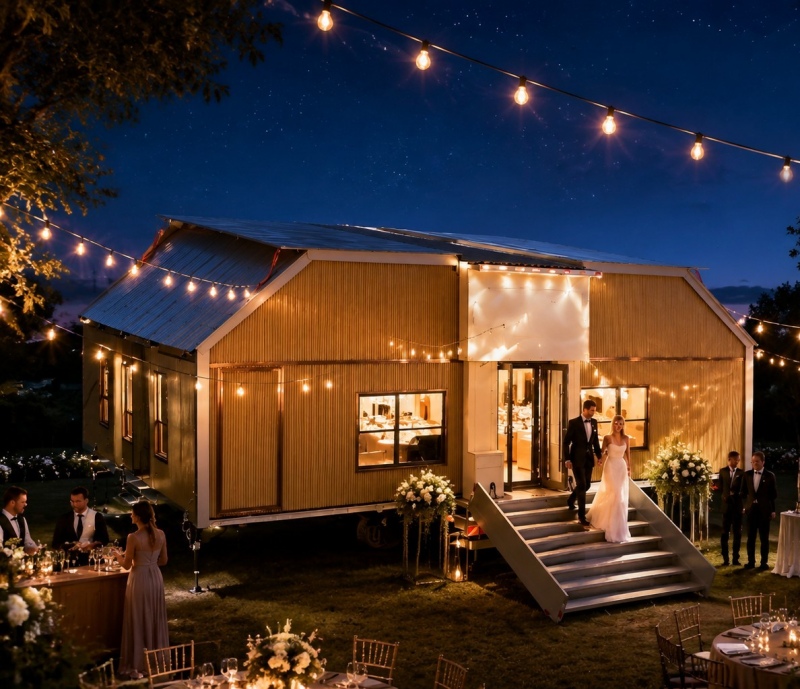

Fully Unfolded State of LZM Expandable Event Trailer

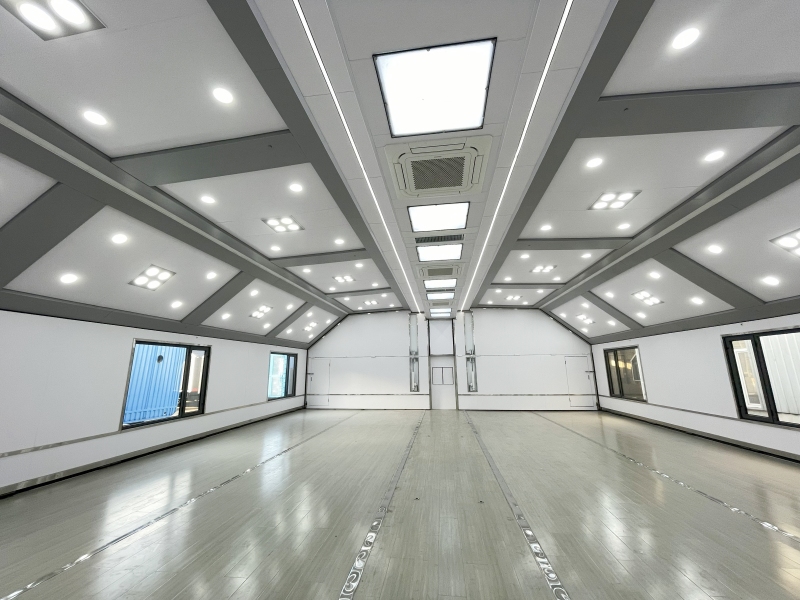

This image shows the fully unfolded structure and large pillar-free interior event space.

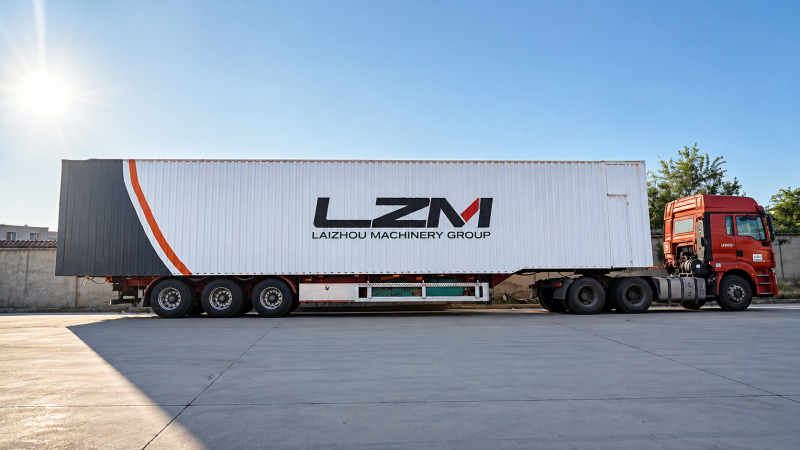

Folded Transportation State of LZM Expandable Event Trailer
The expandable event trailer folds into a compact transport configuration for transportation and relocation between project sites.

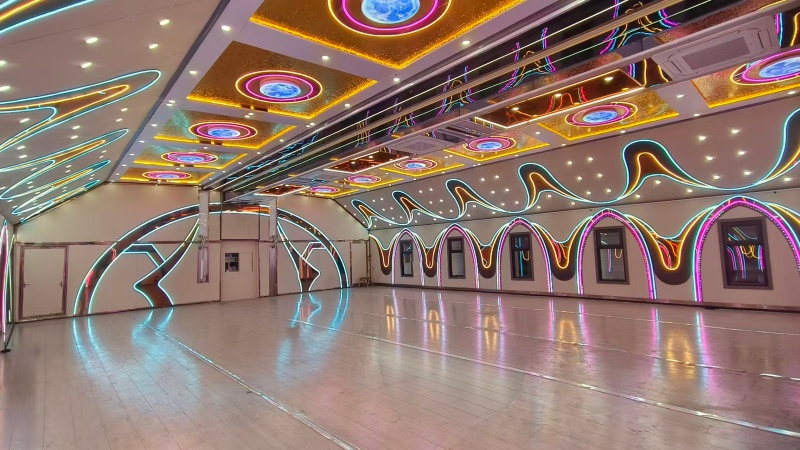

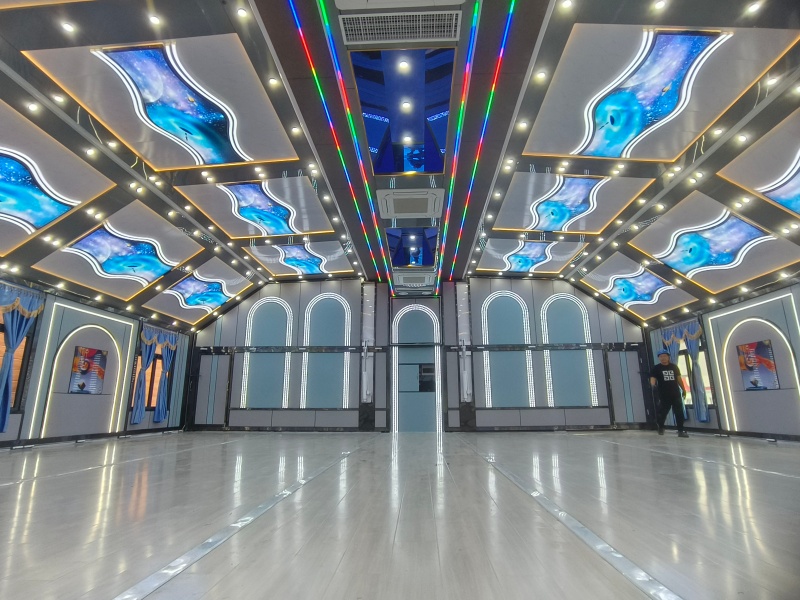

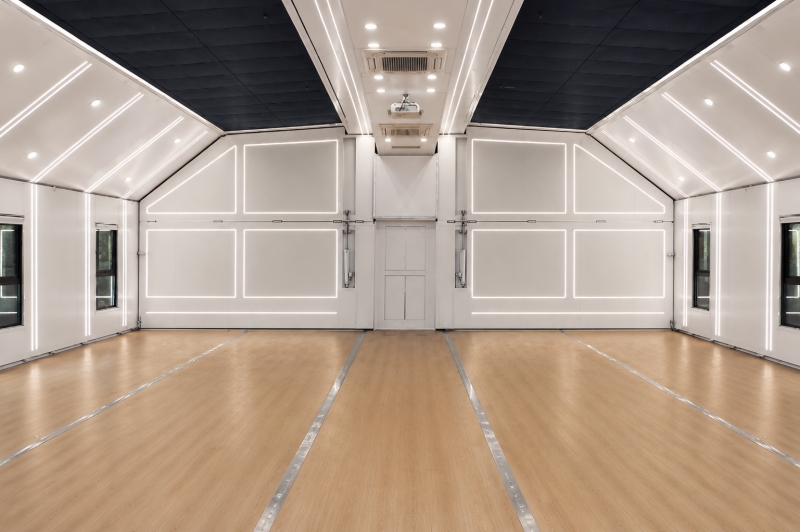

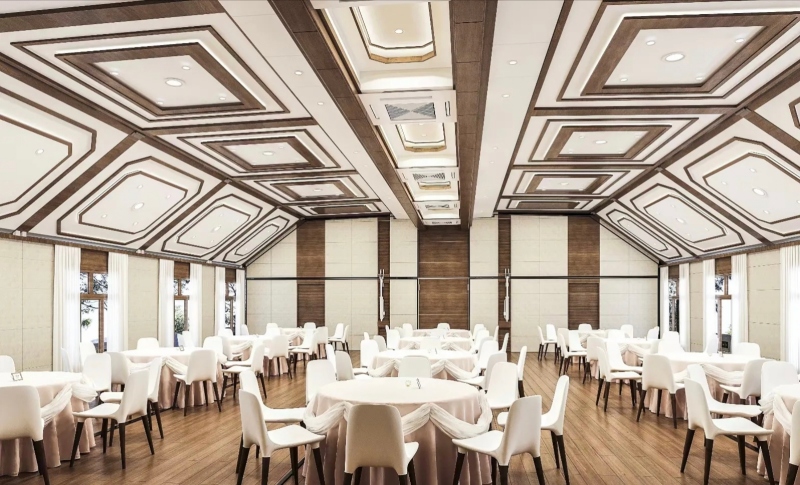

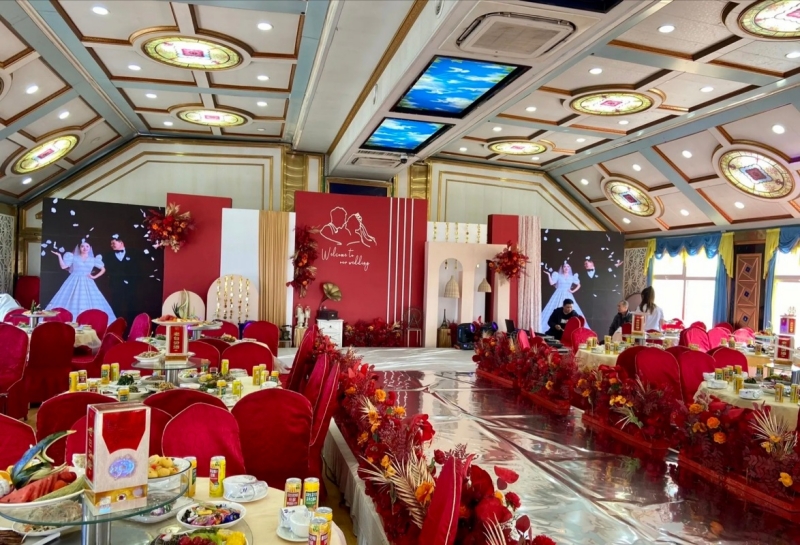

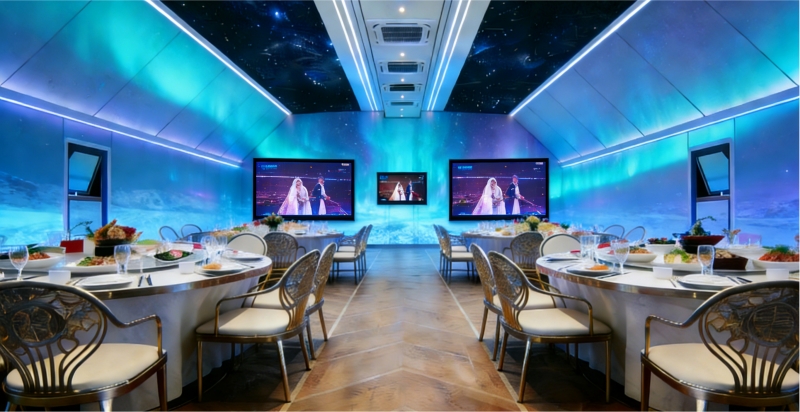

Luxury Interior Design of LZM Expandable Event Trailer
The interior of LZM expandable event trailer features a spacious open layout, modern LED lighting, premium wall panels and customizable design options.
Our expandable event trailers are available in standard lengths from 12m to 21m, including 12m, 15m, 17m, 19m and 21m models. Popular transportation references include 40ft, 50ft, 55ft, 62ft and 70ft sizes. Customized dimensions are also available according to project requirements.
| Model | Length | Approx. Feet Reference | Transport Size (L×W×H) | Usable Interior Area | Capacity |
|---|---|---|---|---|---|
| FBT1200B | 12m | 40ft | 12×2.85×4.25m | Approx. 125㎡ | 140–160 Guests |
| FBT1500B | 15m | 50ft | 15×2.85×4.25m | Approx. 160㎡ | 180–220 Guests |
| FBT1700B | 17m | 55ft | 17×2.85×4.25m | Approx. 185㎡ | 220–260 Guests |
| FBT1900B | 19m | 62ft | 19×2.85×4.25m | Approx. 210㎡ | 260–300 Guests |
| FBT2100B | 21m | 70ft | 21×2.85×4.25m | Approx. 235㎡ | Up to 320 Guests |
Besides standard models, we can customize expandable event trailers according to project requirements, including different lengths and transportation solutions.
45FT Expandable Event Container / Expandable Event Trailer
48ft expandable event trailer
53ft expandable event trailer
60ft expandable event trailer
Other customized lengths
Standard expanded version: Approx. 12m interior width
Compact customized version: Approx. 10m expanded interior width
Transport width can be reduced to approx. 2.55m depending on configuration
Internal length: Transport length minus approximately 1.4m
Interior height: Approx. 3.8m+
Standard transport cross-section: Approx. 2.85m wide × 4.25m high.
Customized compact transport configuration: Width can be reduced to approx. 2.55m and height to approx. 4.0m, depending on model and project requirements.
Wind Resistance: Up to Force 9 (approx. 47–54 mph wind speed)
Interior Material Fire Rating: B2 Fire Retardant
Steel structure: Q235 structural steel and Q345 high-strength structural steel, depending on the component and engineering requirements.
Wall Insulation Thickness: 50 mm
The LZM expandable event trailer combines a steel structural frame, hydraulic expansion system, independent support legs, electrical system, HVAC and insulated wall/roof system to create a large relocatable mobile event space. It can be supplied as a complete trailer or as an expandable superstructure without chassis.
Electrical configuration: Customized according to the destination country, available site power supply and total project load. The trailer can be connected to an external mains power supply or powered by a suitable generator when grid power is unavailable. For example, European projects can be configured for 230V single-phase or 400V three-phase, 50Hz power, while U.S. projects can be configured for 120/240V, 60Hz systems. Other voltage, frequency and phase configurations can be customized according to the electrical standards and available site power supply in the destination country.
Climate configuration: The insulated expandable structure can be configured for hot, cold, windy and heavy-snow environments according to destination conditions and project requirements.
Hot-climate options: Upgraded wall and roof insulation, polyurethane foam insulation, improved sealing and increased air-conditioning capacity are available for high-temperature markets.
Additional emergency & backup options: The standard configuration already includes the safety systems required for normal operation. For customers who require additional redundancy or emergency backup, optional systems can include a manual hydraulic pump, emergency lowering system, manual override, mechanical locking system, backup hydraulic pump and emergency power disconnect switch. These additional options are selected according to project requirements and customer preferences.
The LZM 45FT Expandable Event Container combines a standardized container-based transport configuration with a large expandable event space for international projects.
In the closed transport condition, the unit is designed around standard 45FT container dimensions, with standard container corner castings and twist-lock positions. The transport width is approximately 2.44m, and the current configuration has an estimated superstructure weight of approximately 23 tons.
Unlike a conventional expandable event trailer with a dedicated road chassis, the 45FT expandable event superstructure and container chassis can remain separate. Customers can select a suitable 45FT container chassis locally according to local road regulations, load requirements and operating conditions. This container-based configuration can also provide an alternative for markets where transporting a complete dedicated semi-trailer by specialized breakbulk shipping is less practical.
At the event site, the expandable superstructure can be independently supported and operated without keeping the transport chassis underneath the venue. This provides greater flexibility for event rental companies, venue operators and international projects requiring repeated transportation between locations.
For customers researching the broader Expandable Container House category, LZM focuses on large expandable spaces specifically designed for event, hospitality and commercial applications.
LZM expandable event trailers can be supplied as a complete trailer with chassis or as an expandable superstructure only without chassis.
The superstructure-only option is suitable for customers who prefer to source the chassis locally or install the expandable unit on a locally prepared supporting structure. The expandable superstructure is manufactured and tested in China before shipment, and technical drawings and remote installation support can be provided.
The video below shows an actual LZM expandable event trailer superstructure exported to Spain without chassis.

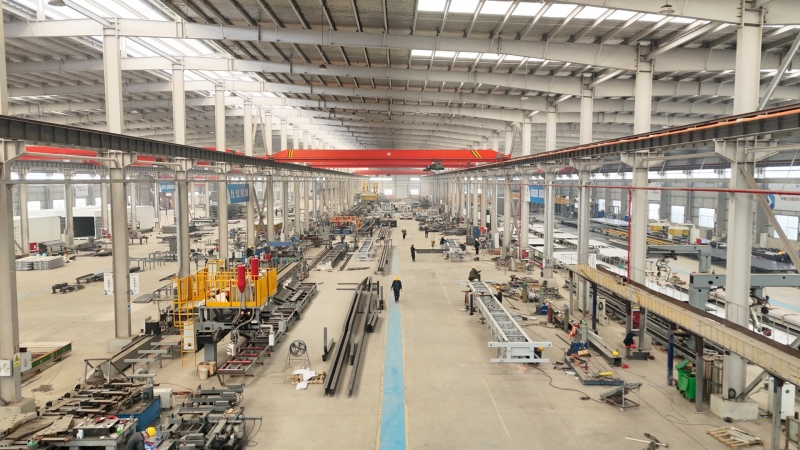

LZM specializes in manufacturing double-side expandable event trailers, providing customized mobile event solutions for wedding businesses, brand companies, event agencies and rental operators across international markets.

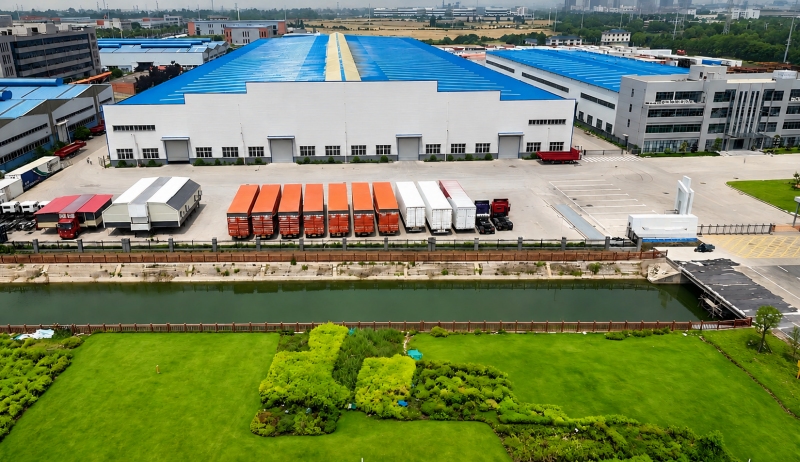

With over 500 units annual production capacity, our factory delivers stable quality, reliable lead times and full customization services.

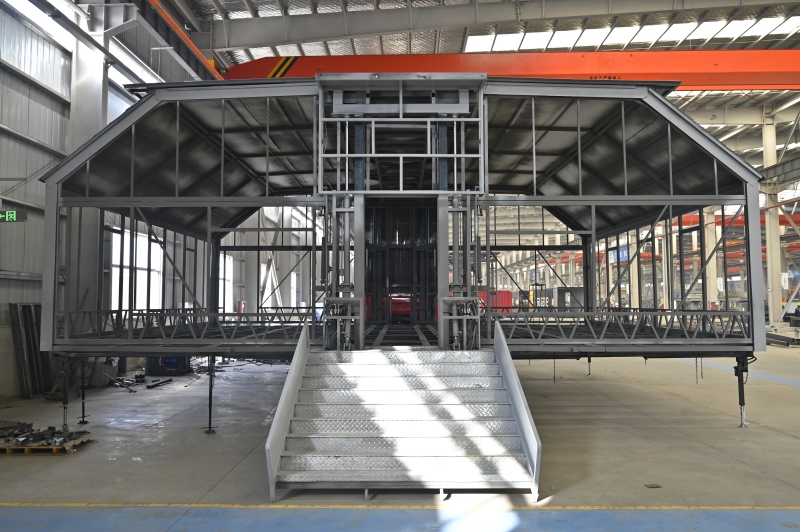

Watch the five-minute factory tour below to see the different stages of production, including steel structure fabrication, expandable frame assembly, wall and insulation installation, electrical preparation and interior construction.
By viewing trailers under production rather than only showroom models, buyers can judge the structure and workmanship behind an LZM mobile wedding hall, which some customers call a wedding hall truck.
Learn More About the LZM Expandable Event Trailer Factory and Manufacturing Process
LZM welcomes international buyers, event rental companies and wedding businesses to discuss customized expandable event trailer projects and arrange a factory visit in China.
Our flagship double-side expandable event trailer series covers 12m to 21m. Lengths, layouts and finishes can be customized.
Best for: wedding receptions, private parties and mobile banquet operators needing a shorter trailer.
Distinctive: double-side expansion on a 3-axle chassis.
Best for: wedding banquets, birthday celebrations, family gatherings and event rental fleets.
Distinctive: commercial front entrance for guest access and a premium LED lighting system.
Best for: luxury wedding receptions, banquet venue operators and premium private celebrations.
Distinctive: wide pillar-free interior, luxury ceiling design and optional 5D projection system.
Best for: large banquets, corporate events and event rental operators needing more capacity than the 17m model without moving to the largest 21m configuration.
Distinctive: approximately 210㎡ of usable interior area with capacity for approximately 260–300 guests.
Best for: larger wedding banquets, private celebrations and rental businesses needing maximum indoor space.
Distinctive: the largest hall in the range, expanded to approximately 19.6 × 12m on a 4-axle chassis.
LED Screen
Generator: 50–200 kW options available, selected according to the total electrical load
Air Conditioner 3HP / 5HP
Kitchen
Restroom
Sound system
Exterior Branding & Graphics
Hot air curtain
Automatic Fire Sprinkler System
5D Immersive holographic projection system
Fire Extinguisher
Chassis
Emergency & Backup Package: Manual hydraulic pump, emergency lowering system, manual override, mechanical locking system, backup hydraulic pump and emergency power disconnect switch
Expandable event trailers provide temporary or relocatable event space where permanent construction is not practical. Key applications include:
Wedding & Banquet – ceremonies, receptions, destination weddings and private parties in a mobile wedding hall or mobile party hall, with VIP dining for 140–320 guests. See Mobile Wedding Venue Solutions.
Brand Activation, Roadshows & Experiential Marketing – product launches, brand activation trailers, experiential marketing and promotional tours
Exhibitions, Media & Technology – exhibition halls, traveling museums, science centers, broadcasting and VR studios.
Corporate Events & VIP Hospitality – corporate event venues, expandable hospitality trailers, VIP reception suites, sponsor lounges and client hospitality spaces.
Visitor Centers – temporary visitor and information centers, pop-up club halls.
Mobile Restaurant & Pop-Up Dining – pop-up restaurants, resort dining, festival food venues.
Retail & Showrooms – mobile showrooms, temporary stores, brand promotion centers.
Education & Sports – temporary classrooms, STEM spaces, indoor sports halls, training centers.
Government & Emergency – emergency command centers, disaster response, mobile offices.
Church & Community – mobile church halls, worship and community spaces.
Tourism & Commercial Events – festival halls, mobile cinemas, pop-up event halls.
See detailed solutions on Other Expandable Mobile Space Applications.

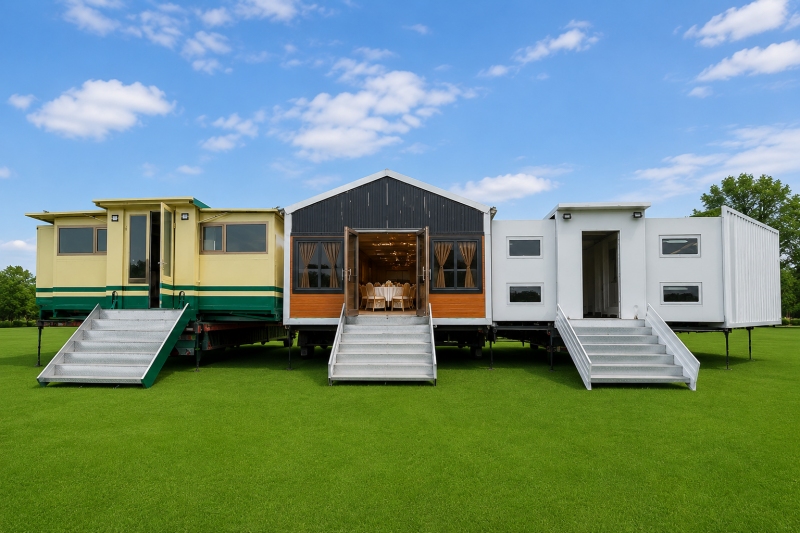

LZM provides integrated mobile hospitality solutions combining expandable event trailers with supporting facilities such as expandable kitchen containers and expandable accommodation containers.
This complete solution is suitable for resorts, outdoor events, festivals, temporary hospitality projects and remote locations where flexible commercial spaces are required.

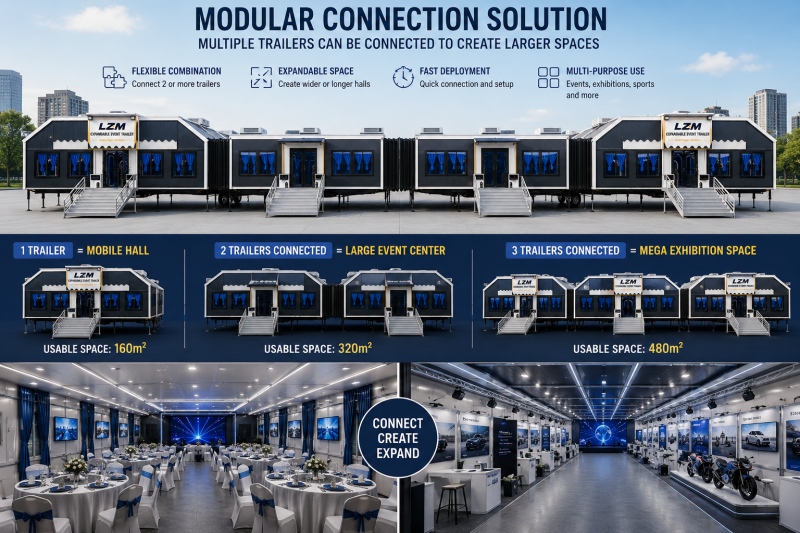

Our expandable event trailers can be used individually or connected together to create larger indoor spaces for exhibitions, weddings, sports activities, training centers and commercial events.
Two or more trailers can be combined according to project requirements.
This project showcases a 17m expandable event trailer equipped with a 5D projection system for weddings, private events and commercial venue operations.
Watch the project video:
View 17m 5D Wedding Venue Video
Read the full project case:
Read 17m 5D Wedding Venue Case Study
Independent U.S. Market Reference
Briza On The Move – Luxury Mobile Event Venue
Briza On The Move demonstrates how mobile event spaces can be used for premium weddings, corporate events and luxury pop-up experiences in the US market.
Website:
Briza On The Move Official Website
Read USA Market Application Article

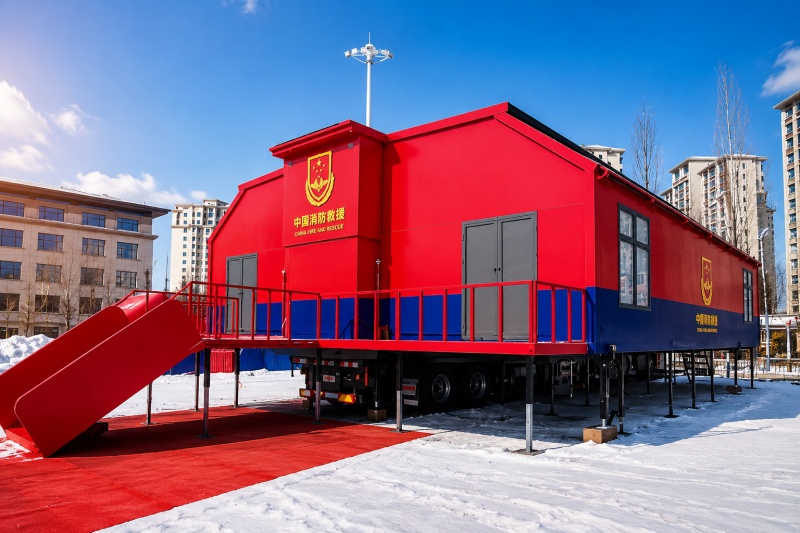

This expandable emergency command center trailer was delivered for emergency response, disaster management, and operational coordination applications.
The mobile command center provides a flexible workspace solution with rapid deployment capability, integrated communication systems, and customized interior layouts for emergency organizations and public safety applications.

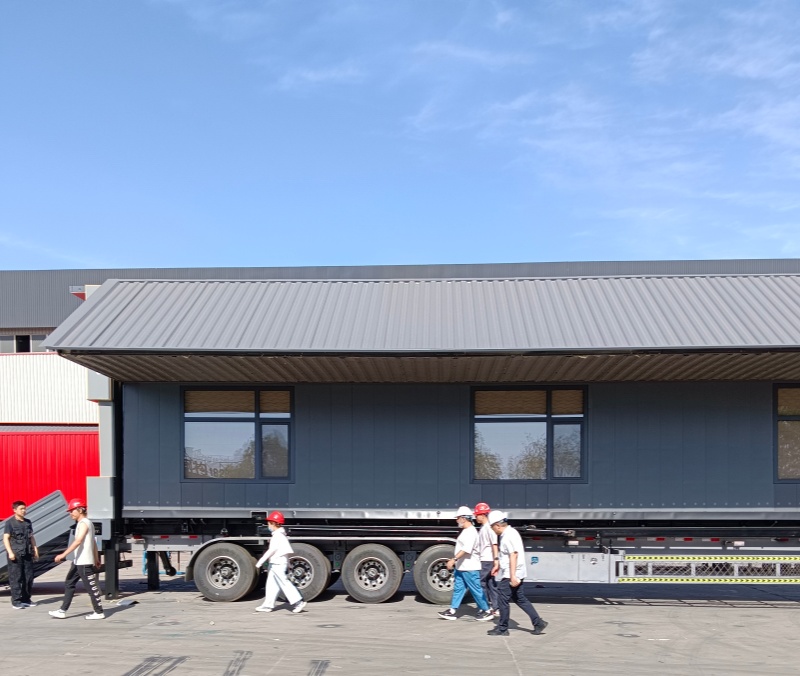

LZM welcomes customers and partners from different countries to visit our factory and discuss customized expandable event trailer solutions.

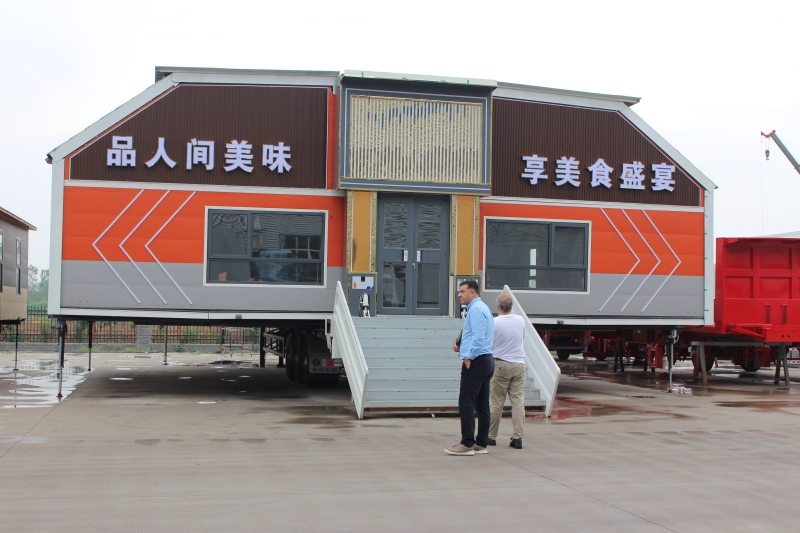

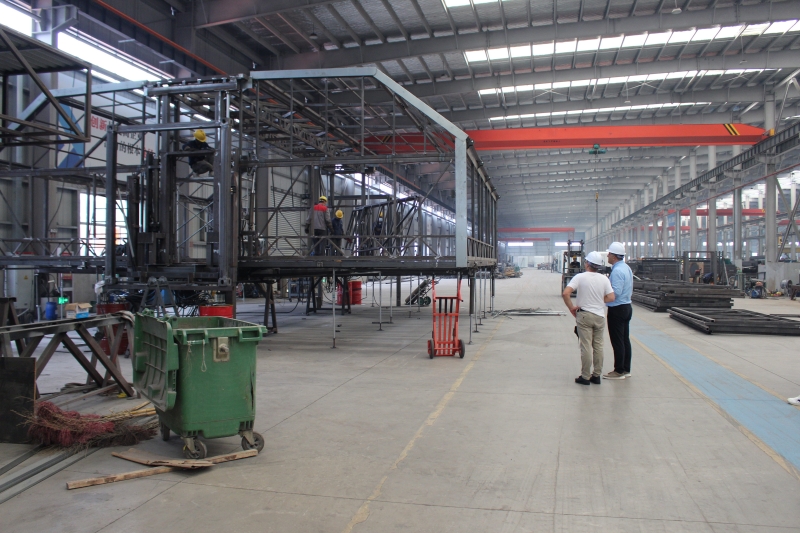

German Customer Factory Visit – Sports & Football Training Facility Project
A German customer visited our expandable event trailer and production workshop to evaluate a customized mobile space solution for a football training facility.

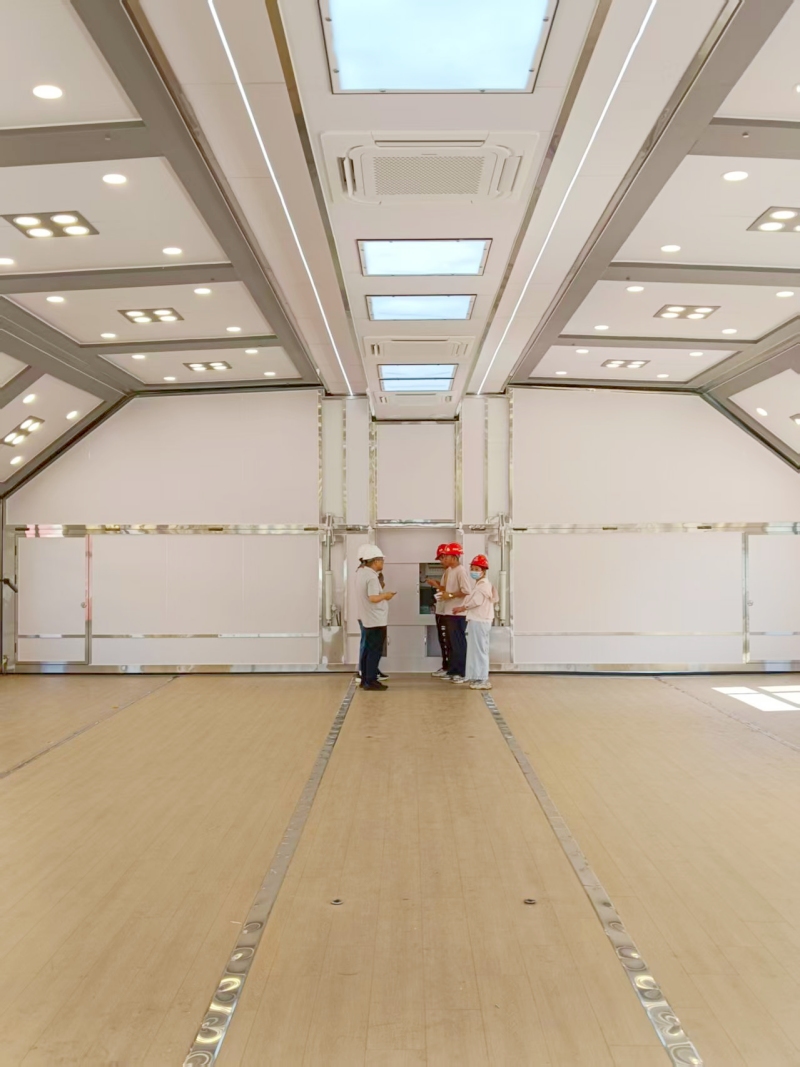

Each customized expandable event trailer is fully assembled and tested at the factory before shipment. Testing can include expansion and folding, hydraulic operation, electrical systems, lighting, air-conditioning, support-leg operation and water leakage testing according to the final project configuration. Buyers can review the completed unit before delivery, and operation manuals, training and remote technical support are available for international projects.
LZM expandable event trailers start from USD 59,000 EXW. Final pricing depends on trailer size, interior design, equipment and customization requirements.
LZM is an expandable event trailer supplier offering models for sale to commercial buyers, event companies and distributors worldwide. If you are looking to buy an expandable event trailer, contact us for specifications, pricing and purchase options.
Structural warranty: 5-year warranty on the main structure.
Electrical warranty: 3-year warranty on electrical equipment.
Complimentary spare parts: A selection of commonly needed wear parts is supplied free of charge with your event trailer.
Operator training: Training is available at our factory, through operation videos, or via live remote sessions.
Operation manuals: Chinese and English operation manuals are provided with your event trailer.
Please contact LZM for detailed warranty terms and the spare parts list for your selected configuration.
Our factory holds ISO certification. Certification, documentation and technical requirements vary by destination country and selected configuration. Depending on the project, available documentation and configurations may include CE-related documentation for the expandable superstructure, as well as destination-specific requirements for markets such as the United States and Saudi Arabia.
Road registration, vehicle approval, building permits and other local approvals must be confirmed according to the destination market and final configuration.
For a more accurate expandable event trailer recommendation and quotation, please provide your destination country, intended application, required guest capacity, preferred trailer size, local electrical standard and major optional equipment. For an event rental trailer, corporate event venue, hospitality trailer, mobile wedding venue or other customized mobile event space, LZM can recommend a suitable model and configuration based on the project requirements.
Q: What sizes and usable floor areas are available?
A: Our expandable event trailers — used as mobile wedding venues, banquet halls and other mobile event spaces — are available in standard lengths from 12m to 21m, with approximately 125–235㎡ of usable interior space for about 140–320 guests. Customized lengths and widths are also available.
Q: How much does an expandable event trailer cost?
A: Our expandable event trailers range from USD 59,000 to USD 140,000 EXW, depending on the model and configuration. The USD 59,000 starting price applies to the 12m model with a China-spec chassis, standard interior and China-spec air conditioning. Optional upgrades and shipping are quoted separately.
Q: Can the trailer be customized?
A: Yes. Dimensions, interior layout, custom floor plans, flooring, lighting, electrical systems, branding, furniture and other features can be customized according to customer requirements. For projects in heavy-snow areas or with special structural requirements, the structure can also be customized; standard roof load capacity is approximately 300 kg/m², depending on the final configuration.
Q: What is the production lead time?
A: Normally 45 days depending on specifications and order quantity.
Q: How long does deployment take?
A: Under normal operating conditions, one operator can expand or fold the trailer in under 30 minutes. Actual time may vary with the model, site conditions and selected configuration.
Q: How is the trailer transported and shipped internationally?
A: Shipping method depends on the model, transport dimensions and selected configuration. Large complete trailers may require breakbulk, Ro-Ro or other project-cargo solutions. The dedicated 45FT container-based configuration is designed around standard 45FT container dimensions, corner castings and twist-lock positions, allowing it to be transported by container vessel as a 45FT container where accepted by the carrier and port. This can significantly reduce shipping costs compared with specialized breakbulk transport and provides access to a much wider network of container ports. Superstructure-only configurations may also use different transport solutions depending on final dimensions and destination. LZM confirms the shipping plan according to the final configuration and destination port.
Q: Can I buy the superstructure without a chassis?
A: Yes. LZM can supply the expandable superstructure without a chassis, allowing customers to source a suitable chassis or supporting structure locally according to local regulations, load requirements and operating conditions. For the dedicated 45FT container-based configuration, a suitable 45FT container chassis can be sourced locally. The superstructure can also be independently supported at the event site.
Q: Can the trailer be configured for my destination market's electrical system?
A: Yes. The electrical system can be customized according to the destination country, available site power supply and total project load. The trailer can use external mains power or a suitably sized generator. European and U.S. configurations are examples only; voltage, frequency and phase can be adapted to the electrical standards of other destination markets.
Q: Can the expandable event trailer be customized for hot climates such as the Middle East and desert regions?
A: Yes. For high-temperature environments, the trailer can be configured with upgraded wall and roof insulation, polyurethane foam insulation, improved sealing and increased air-conditioning capacity according to the destination climate and project requirements.
Q: Can a kitchen or restroom be installed?
A: Yes. Restrooms and kitchen facilities can be integrated according to project requirements. Restroom systems can include customized plumbing, water and waste tanks, while kitchens can include sinks, worktops, storage cabinets, cooking equipment and ventilation.
Q: Can the expandable event trailer operate independently after being removed from the transport chassis?
A: Yes. The expandable superstructure is equipped with an independent support system and can be supported and operated at the event site without keeping the transport chassis underneath. This also allows customers to use locally sourced transport solutions where appropriate.
Q: What electrical power capacity is required?
A: Total electrical load depends on trailer size, air-conditioning capacity, lighting, LED systems, kitchen equipment and other optional equipment. LZM calculates the required load according to the final configuration. The trailer can use local mains power or a suitably sized generator, with generator options from 50 to 200 kW.
Q: What is the weight of the expandable event trailer?
A: As current reference values, the complete 15m trailer weighs approximately 26 tons including the chassis, while the complete 17m trailer weighs approximately 28 tons including the chassis. Final weight depends on the selected configuration.
Q: What warranty, spare parts and after-sales support do you provide?
A: LZM provides structural and electrical warranty coverage, spare parts support, operator training and English operation manuals. See the Warranty, Spare Parts & Training section above for detailed terms.
Q: Are additional emergency and backup systems available?
A: Yes. The standard configuration already includes the safety systems required for normal operation. For customers who require additional redundancy or emergency backup, optional systems can include a manual hydraulic pump, emergency lowering system, manual override, mechanical locking system, backup hydraulic pump and emergency power disconnect switch. These additional options can be selected according to project requirements and customer preferences.
Q: What safety, certification and export requirements apply to my destination country?
A: Requirements depend on the destination market, selected configuration and intended use. LZM can provide available factory documentation, while local road registration, building permits and other local approvals should be confirmed for the destination market. Additional emergency exits can also be customized according to project requirements and applicable local safety regulations.
Contact LZM for a customized expandable event trailer solution based on your application, location and budget: [email protected] | WhatsApp: +86 18663813961.
