Model No.:504 Greehouse King
Size: 2.4x1.3x1.3m (wheelbase can be ajusted)
Engine: 50HP, Weichai/Weinei
Gearbox: 8+2 special gearbox for power output
Tire: rear 9.15-16 and front 600-12
Fored lifting and forced falling ,one group output, rear output 540-720,
2 pieces of couterweight in the front and the rear
Weight: 1000kgs
Groud clearance: 260mm
Optional Equipments:
Tire:rear 13.6-16 and front 757-12

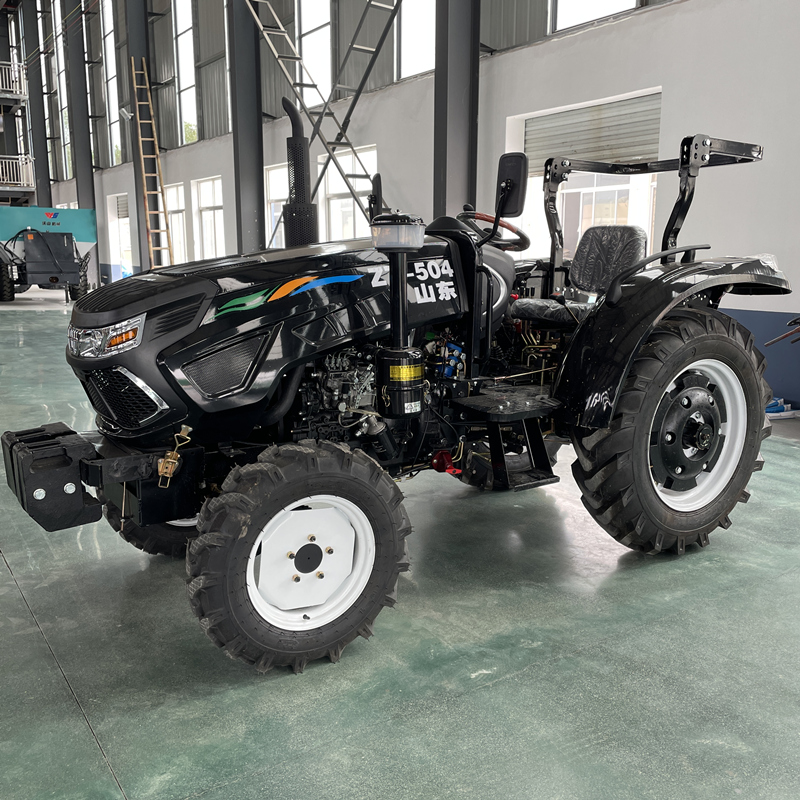

Model No.:504 medium tractor
Size: 3.1x1.5x1.97m (wheelbase can be ajusted)
Engine: 50HP, Weichai/Weinei
Gearbox: 8+8 special gearbox for power output, with shuttle shift TYE bridge.
Tire: rear 11.2-24 and front 650-16
two groups of hydraulic quick connector multi-way valves in the rear, with forced lifting and forced falling , rear output 540-720
With safety frame, with two counterweights in the rear and 4 counterweights in the front
Weight: 1600kgs
Groud clearance: 300mm
Optional Equipments:
Simple anwning
Model No.:604 Greehouse King
Size: 2.4x1.3x1.3m (wheelbase can be ajusted)
Engine: 60HP, Weichai/Weinei
Gearbox: 8+2 special gearbox for power output, TYE bridge
Tire: rear 9.15-16 and front 600-12
Forced lifting and forced falling,one group output, rear output 540-720,
2 pieces of couterweight in the front and the rear
Weight: 1000kgs
Groud clearance: 260mm
Optional Equipments:
Tire:rear 13.6-16 and front 757-12

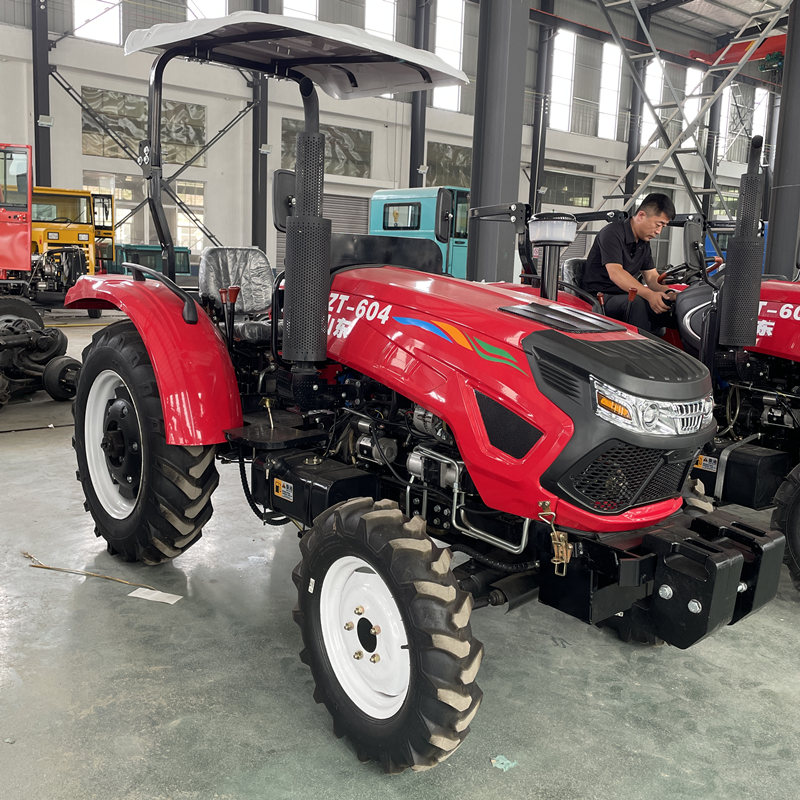

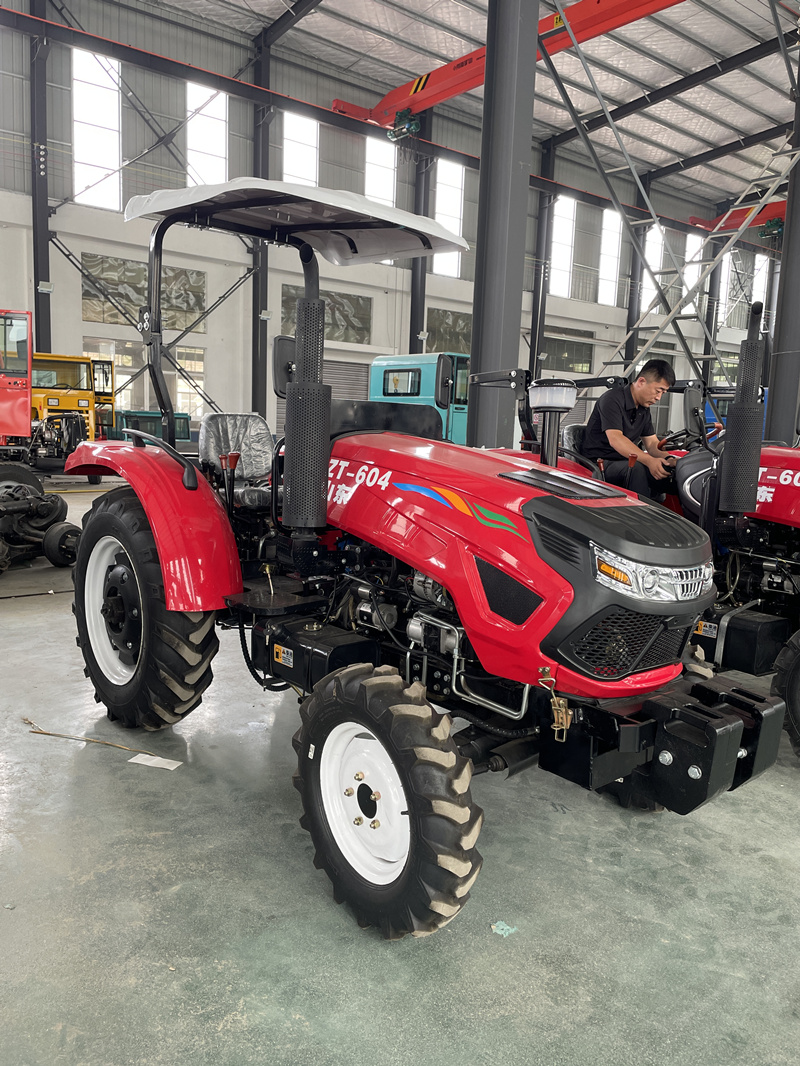

Model No.:604 medium tractor
Size: 3.1x1.5x1.97m (wheelbase can be ajusted)
Engine: 60HP, Weichai/Weinei
Gearbox: 8+8 special gearbox for power output, with shuttle shift
Tire: rear 11.2-24 and front 650-16
Rear two groups of hydraulic quick connector multi-way valves, with forced lifting and forced falling , rear output 540-720
With safety frame, with two counterweights at the rear and 4 counterweights at the front
Weight: 1600kgs
Groud clearance: 300mm
Optional Equipments:
Simple anwning
Model No.:704 Greehouse King
Size: 2.65x1.3x1.3m (wheelbase can be ajusted)
Engine: 70HP, Weichai/Weinei
Gearbox: 8+8 special gearbox for power output, with shuttle shift TE rear axle
Tire: rear 9.15-16 and front 600-12
One group of hydraulic quick connector multi-way valves in the rear, with forced lifting and forced falling,
2 pieces of couterweight in the front and the rear
Weight: 1500kgs
Groud clearance: 260mm
Optional Equipments:
Tire:rear 13.6-16 and front 757-12

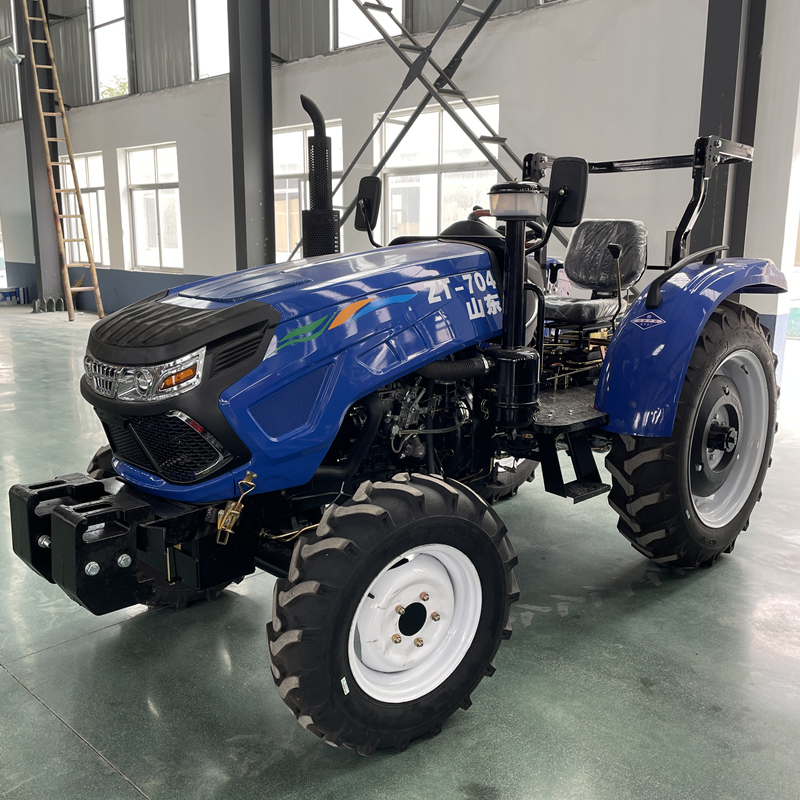

Model No.:704 medium tractor
Size: 3.1x1.5x2.05m (wheelbase can be ajusted)
Engine: 70HP, Weichai/Weinei
Gearbox: 8+8 special gearbox for power output, with shuttle shift TE rear axle
Tire: rear 11.2-28 and front 750-16
Two groups of hydraulic quick connector multi-way valves in th rear , with forced lifting and forced falling , rear output 540-720, 4 pieces of couterweight in the front, with safety frame
Weight: 1600kgs
Groud clearance: 320mm
Optional Equipments:
Simple anwning
Model No.:804 Greehouse King
Size: 2.65x1.3x1.3m (wheelbase can be ajusted)
Engine: 80HP, Weichai/Weinei
Gearbox: 8+8 special gearbox for power output, with shuttle shift TE rear axle
Tire: rear 9.15-16 and front 600-12
Rear two groups of hydraulic quick connector multi-way valves, with forced lifting and forced falling
Weight: 1500kgs
Groud clearance: 260mm
Optional Equipments:
Tire:rear 13.6-16 and front 757-12
Model No.:804 medium tractor
Size: 3.1x1.5x2.05m (wheelbase can be ajusted)
Engine: 80HP, Weichai/Weinei
Gearbox: 8+8 special gearbox for power output, with shuttle shift TE rear axle
Tire: rear 11.2-28 and front 750-16
Two groups of hydraulic quick connector multi-way valves in the rear, with forced lifting and forced falling , rear output 540-720
With safety frame, with two counterweights at the rear and 4 counterweights at the front
Weight: 1600kgs
Groud clearance: 320mm
Optional euipments:
Simple anwning
Optional implements:
Rotary tillage
Ditching machine
Plow
Crushing and returning the galss to the field machine.
