  • Tricycle Concrete Mixer Truck (From 2m3 to 2.5m3)

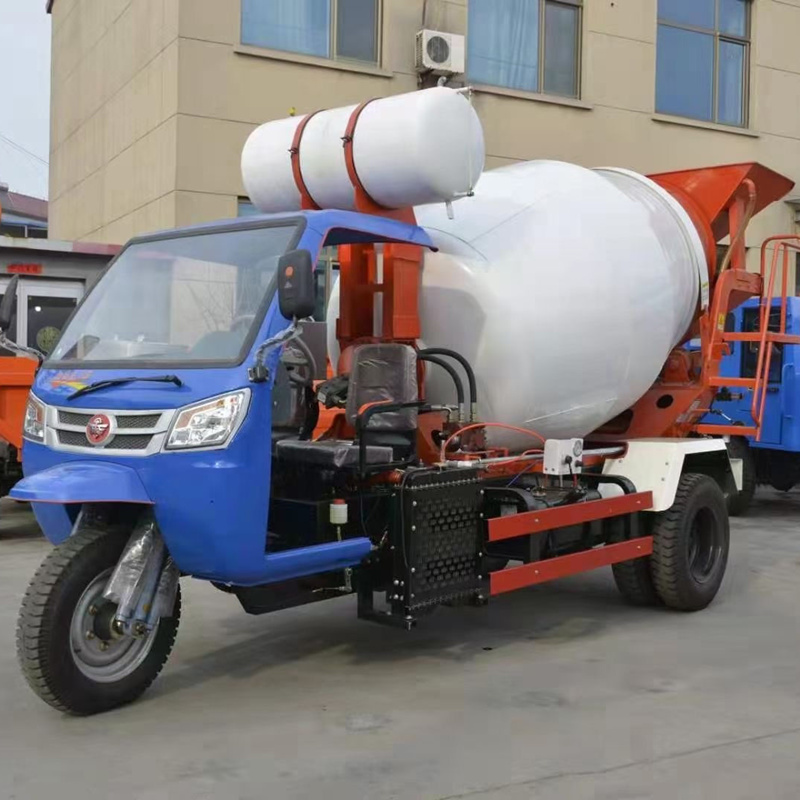

Tricycle Concrete Mixer Truck (From 2m3 to 2.5m3)

  • LZFQSL2500

technical data.jpg

Model No.:LZFQSL2500

Engine: Weichai 490, supercharging

Power: 53kw


Front tire tire:front 600/16, Rear 750/16 or 700/16


Mixing drum geometric capacity: 4.2m3

Mixing drum capacity: 2.7m3

Discharge capacity: 2.5m3

Disel tank: 50L


Feeding ground clearance: 2650mm

Tare weight: 3420kgs

Maximum walking speed: 60km/h

High and low speed: pneumatic adjustment

Feeding speed: 3m3/min

Discharge residual rate: 1.0%

Mininum height of the outlet: 1.0m

Person: 2

Brake: air brake
