  • 4WD Concrete Mixer Truck (From 3.5m3 to 5m3)

4WD Concrete Mixer Truck (From 3.5m3 to 5m3)

  • LZFQ3500-4WD, LZFQ4500-4WD, LZFQ5000-4WD

technical data.jpg

This is a 4 wheel drive concrete mixter truck. It is very poular for the lower price and the high capacity.

Model No.: LZFQ3500-4WD

Engine: Changfa 4102 supercharging

Power:78kw

Tare weight:4450kgs

Tire:750-16, radial, 6 wheel

Drive axle: front Isuzu, rear 1069

Maximum walking speed:70km/h

High and low speed: peumatic adjustment

Diesel tank: 90L

Person:2

Mixing drum capacity: 3.5m3

Filing ratio: 0.67

Discharge speed: 1m3/min

Mixing drum geometric capacity: 4.8m3

Discharge capacity: 3.5m3

Feeding speed:3m3/min

Discharge residual rate: 1.0%

Minimum height of the outlet: 1.0m

Feeding ground clearance: 2920mm

Wheelbase:2900mm

The following parts are optional:

  1. Quantitative automatic water supply (timing, remote control)

  2. Brake water cooling


Model No.: LZFQ4500-4WD

Engine: Changfa 4102 supercharging

Power:78kw

Tare weight:4950kgs

Tire:825-16, radial, 6 wheel

Drive axle: front 2069, rear 2080

Maximum walking speed:72km/h

High and low speed: peumatic adjustment

Diesel tank: 90L

Person:2

Mixing drum capacity: 4.5m3

Filing ratio: 0.67

Discharge speed: 1m3/min

Mixing drum geometric capacity: 6.2m3

Discharge capacity: 4m3

Feeding speed:3m3/min

Discharge residual rate: 1.0%

Minimum height of the outlet: 1.0m

Feeding ground clearance: 2920mm

Wheelbase:2950mm

The following parts are optional:

  1. Quantitative automatic water supply (timing, remote control)

  2. Brake water cooling


Model No.: LZFQ5000-4WD

Engine: Yuchai 4108 supercharging

Power:91kw

Tare weight:5340kgs

Tire:825-16, radial, 6 wheel

Drive axle: front 2069, rear 153

Maximum walking speed:75km/h

High and low speed: peumatic adjustment

Diesel tank: 90L

Person:2

Mixing drum capacity: 5.2m3

Filing ratio: 0.67

Discharge speed: 1m3/min

Mixing drum geometric capacity: 7.5m3

Discharge capacity: 5m3

Feeding speed:3m3/min

Discharge residual rate: 1.0%

Minimum height of the outlet: 1.0m

Feeding ground clearance: 3050mm

The following parts are optional:

  1. Quantitative automatic water supply (timing, remote control)

  2. Brake water cooling

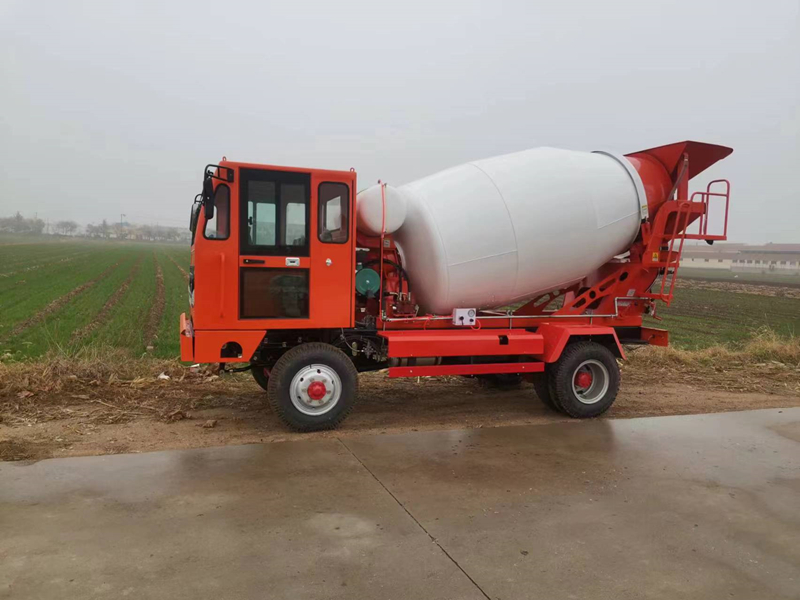

concrete mixer truck 4WD-1.jpg

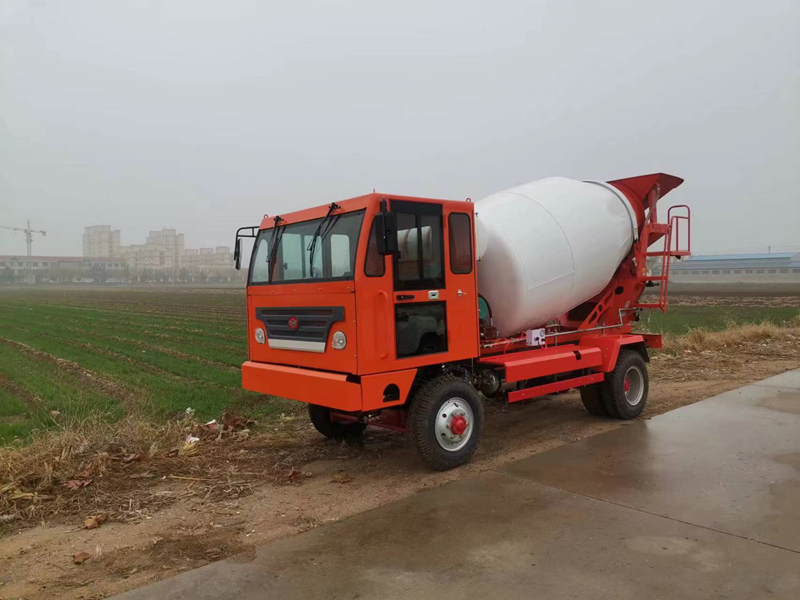

concrete mixer truck 4WD-2.jpg
