Electric Scooptram TXC-2E

  • Model No.: TXC-2E


Mode No.: TXC-2E

Size: 7500x1840x1840mm (shipping status)

Rated load weight: 4t

Bucket capacity: 2m3

Empty weight: 13.8t

Shovel pickup force: 80kn

Tractive force: 110kn

Power: 75kw

Speed (full loading): 0-12kw/h (two way)

Advantages:

Full-disc wet brake device, brake immediately when the pressure is relieved or shut down, which is safer and more reliable;

Using electric motor as power source, no pollution, low energy consumption, plateau motor can be optional in high altitude areas;

The electrical system is waterproof and moisture-proof designed to adapt to high temperature and humidity underground conditions;

The cable retraction is controlled by the hydraulic cable valve, which effectively protects the cable from excessive stretching and prolongs the service life.

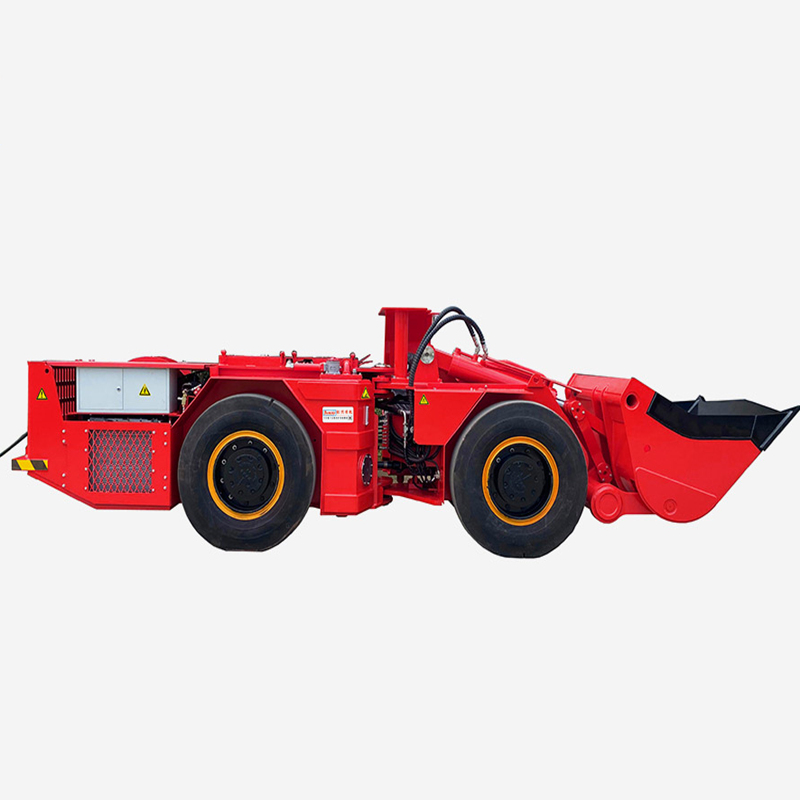

electric LHD loadeer TXC-2E 1.jpg

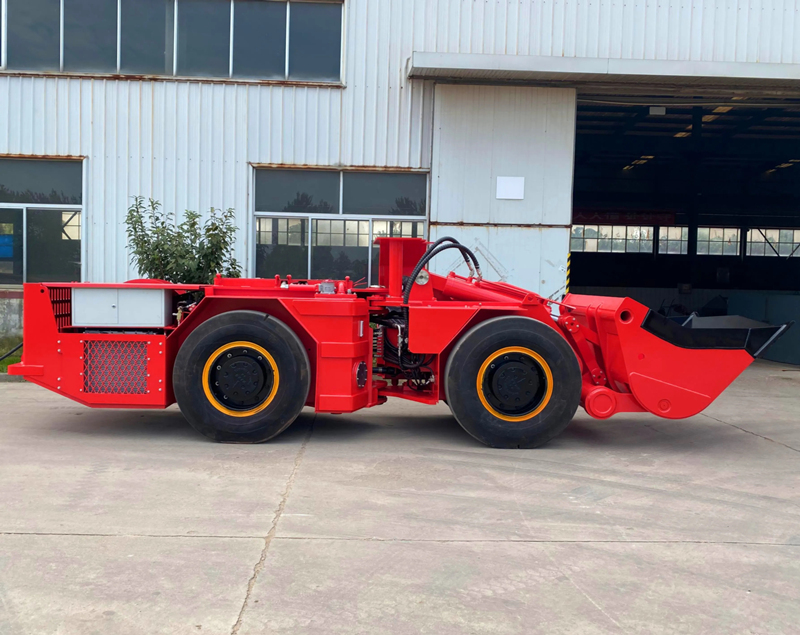

electric LHD loadeer TXC-2E 2.jpg

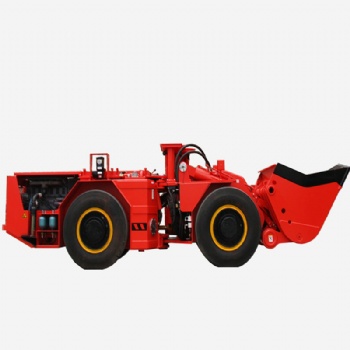

electric LHD loadeer TXC-2E.jpg
