  • Self Loading Concrete Mixer LZ3200 (3.2m3)

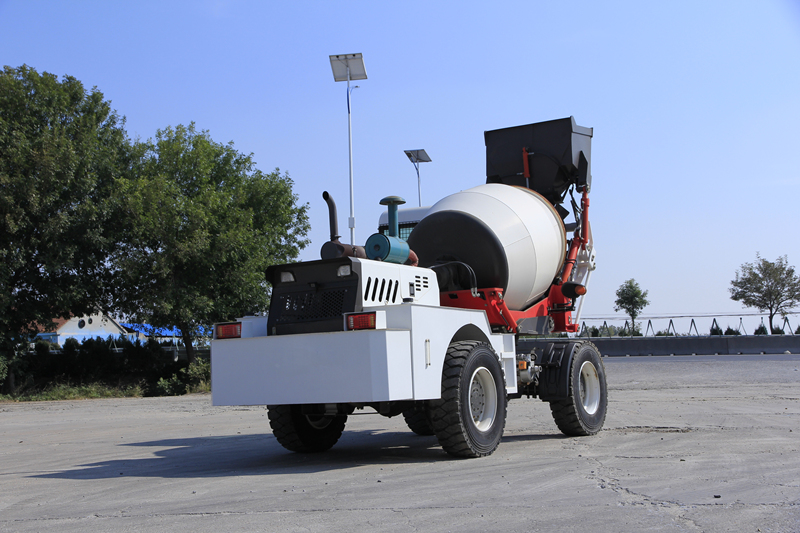

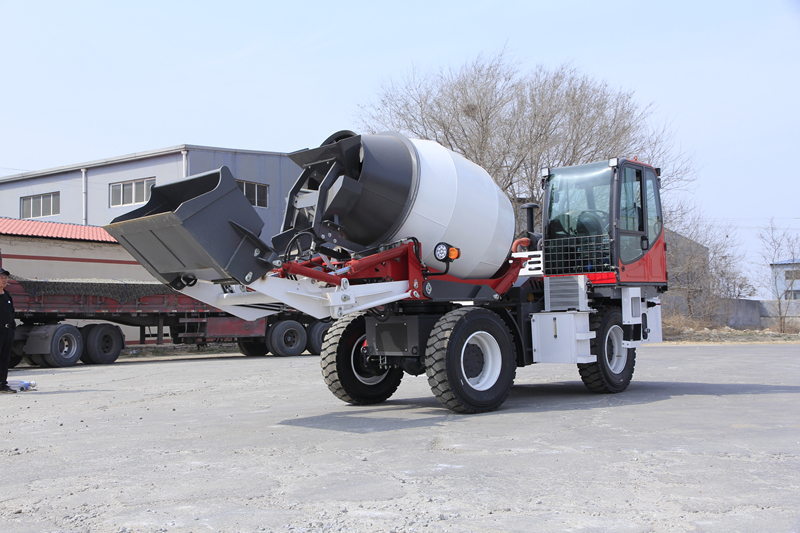

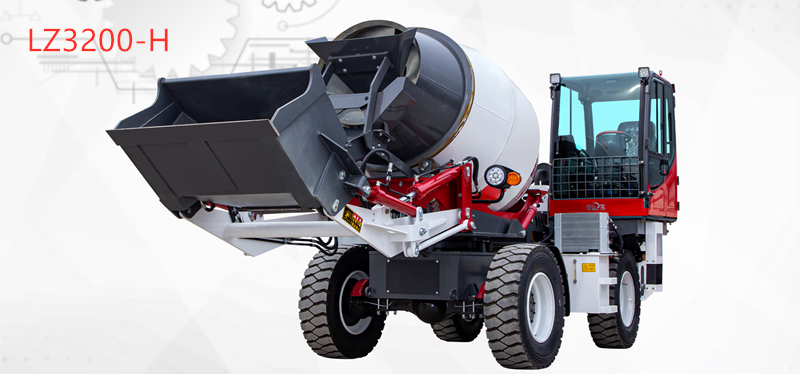

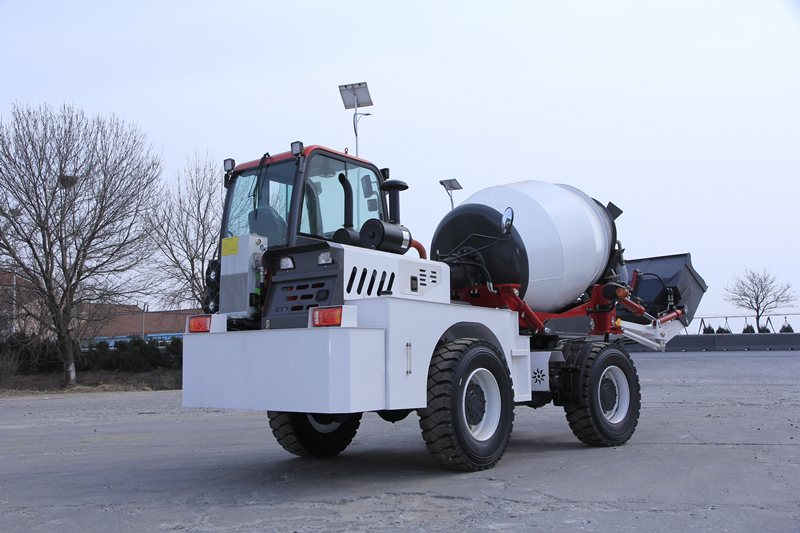

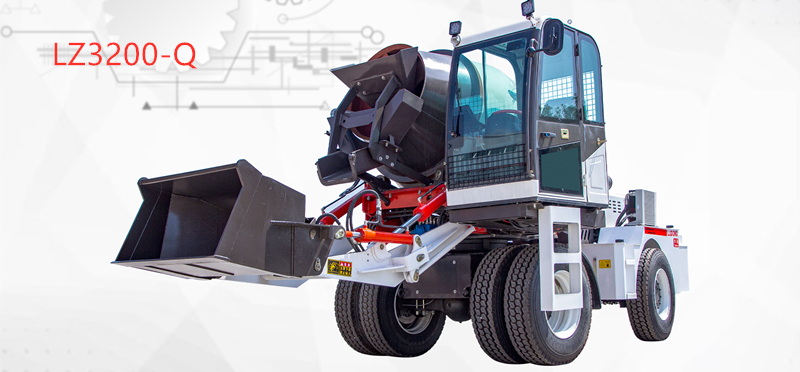

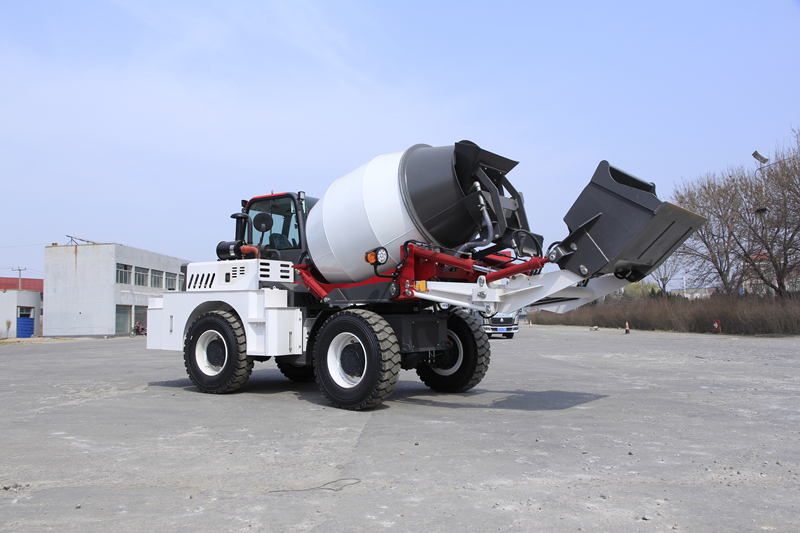

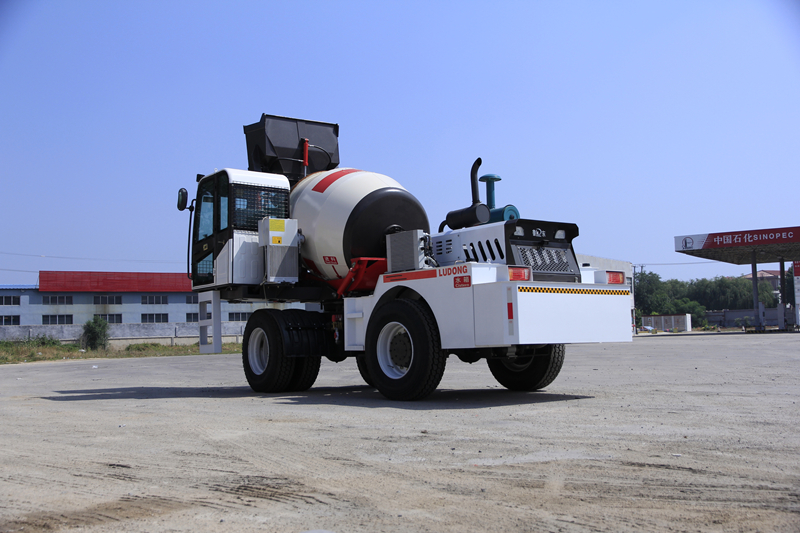

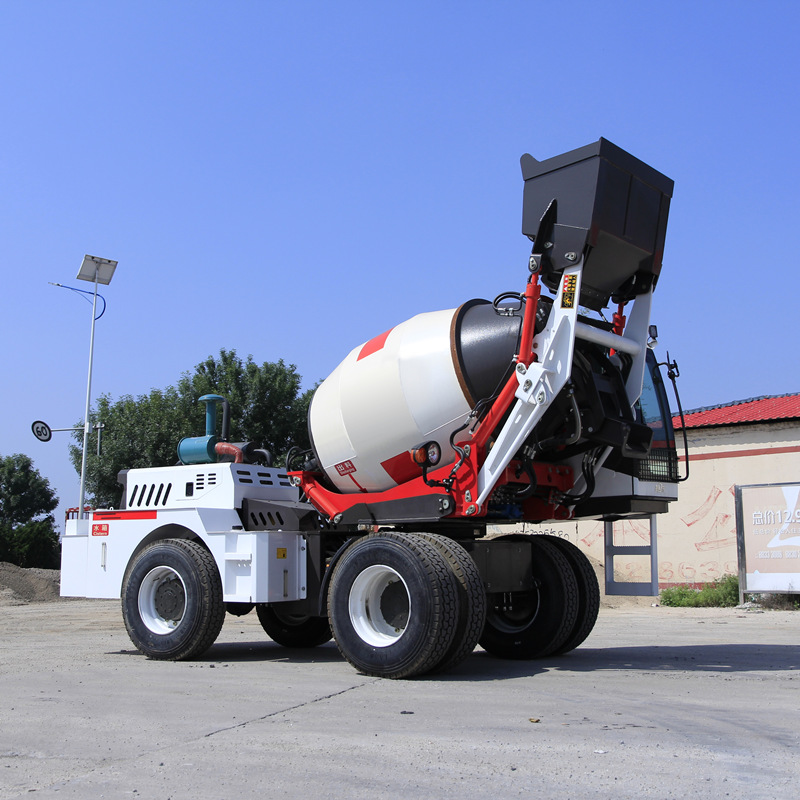

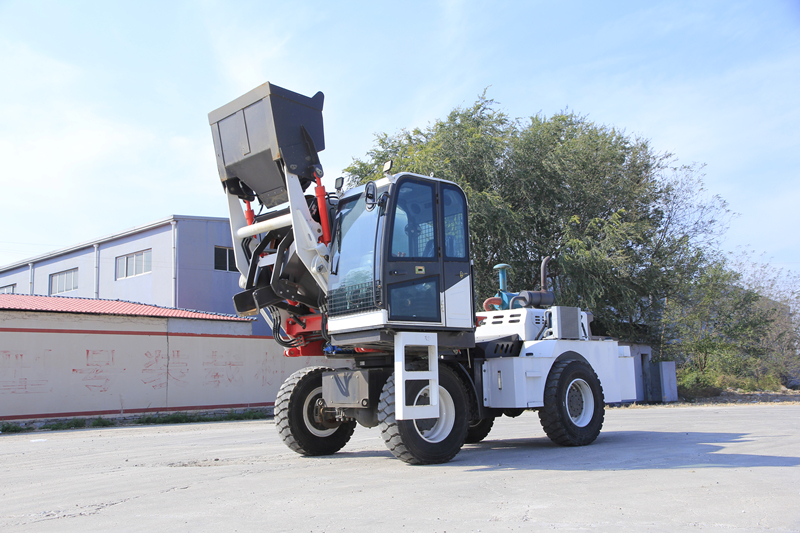

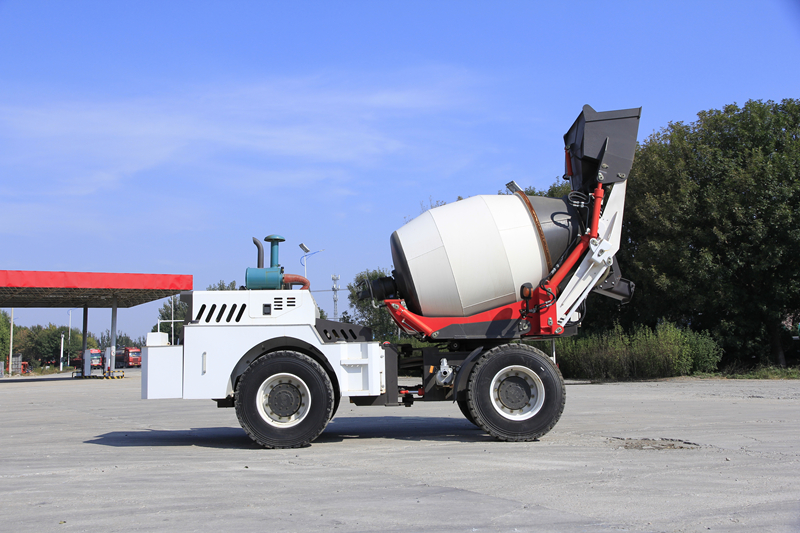

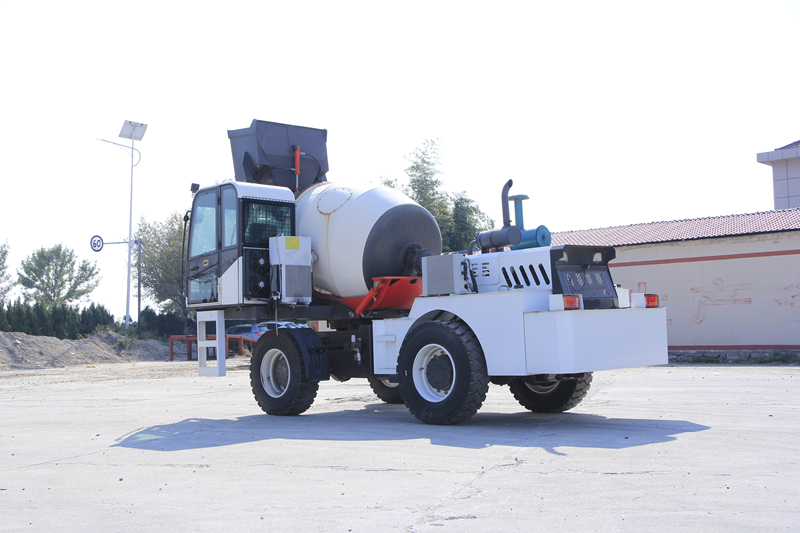

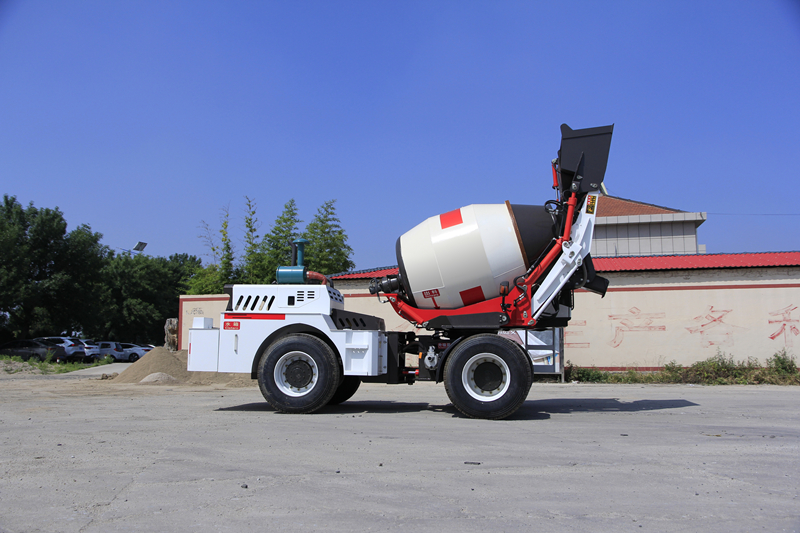

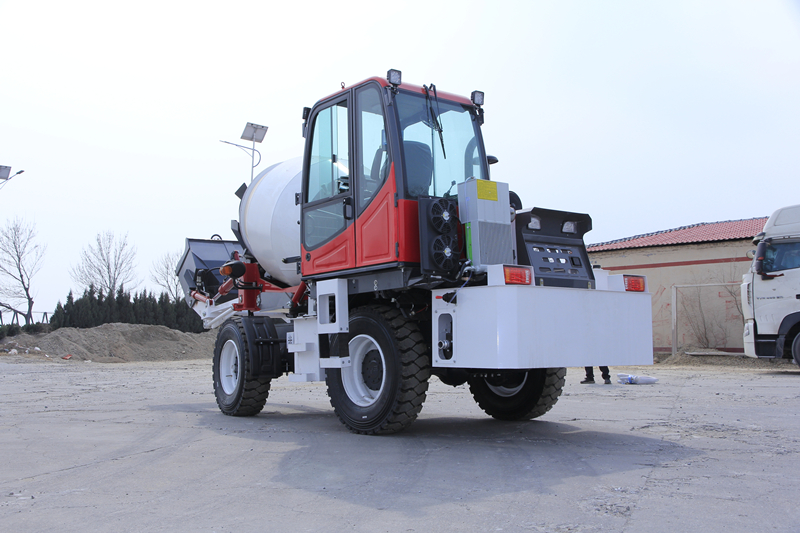

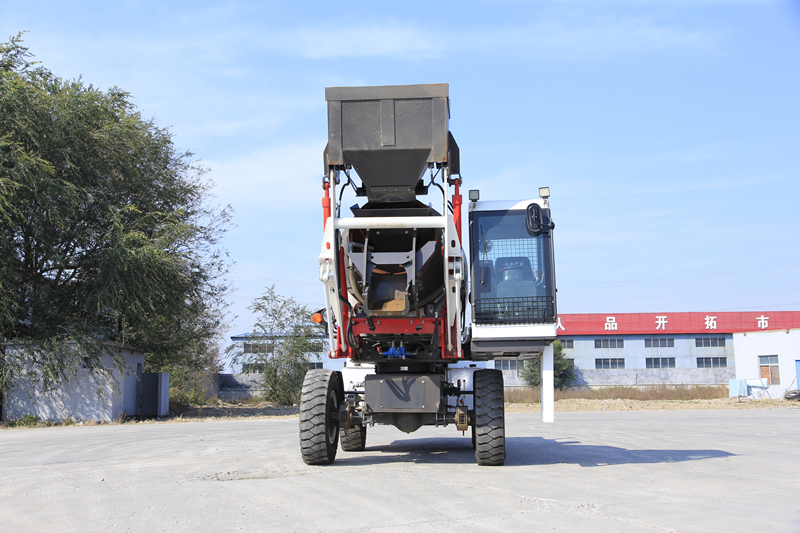

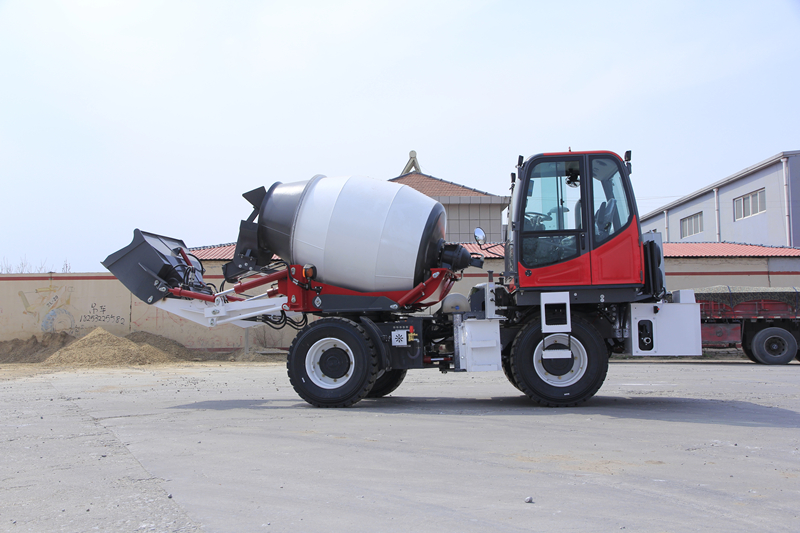

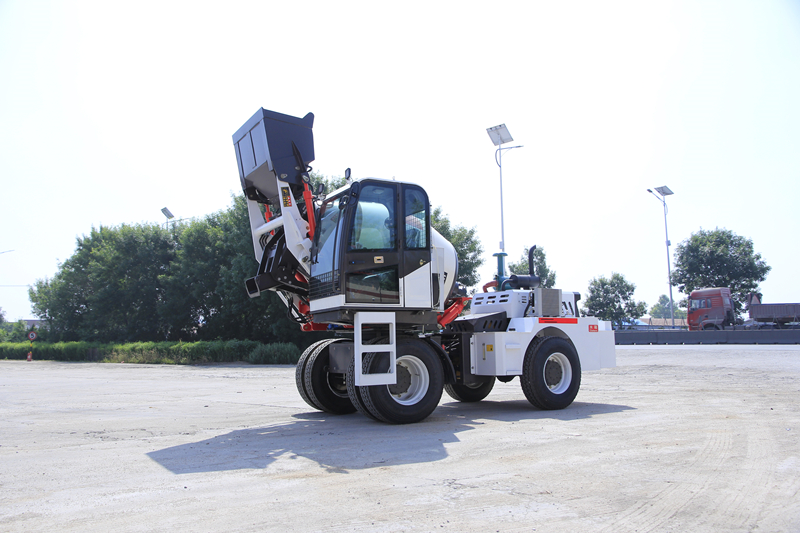

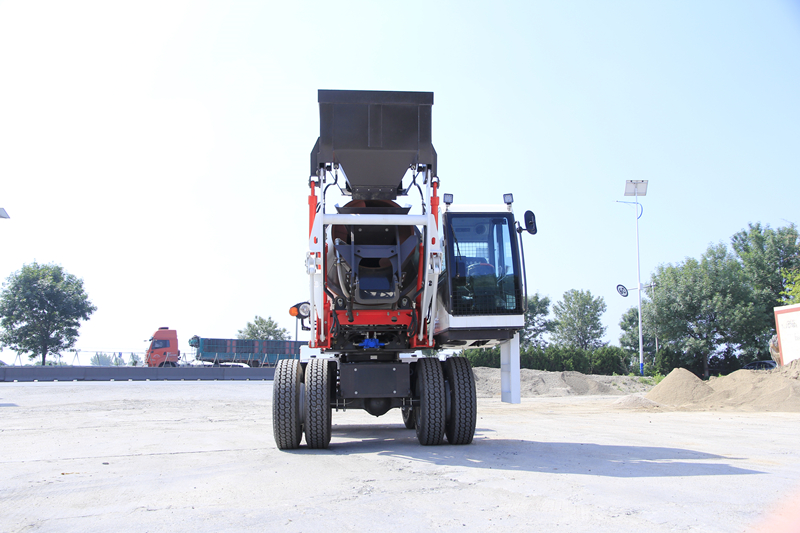

Self Loading Concrete Mixer LZ3200 (3.2m3)

  • Model No.: LZ3200


What is the feature and characteristic of our self loading concrete mixer?

1. Italian technology with improvement provides stable quality and low malfunction rate.

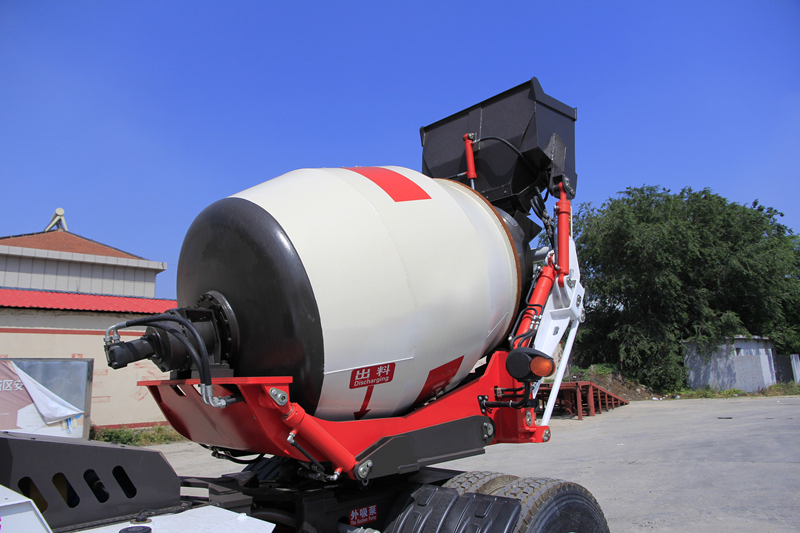

2. The mixing drum uses wear resistant alloy steel for longer service life.

3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.

4. Together with the high accuracy electric weighting unit, it can supply various types of qualified concrete for projects of roads, bridges, tunnels, houses, water tunnels, etc.

5. The compact design makes it flexible in narrow space and suitable for mountainous and country areas.

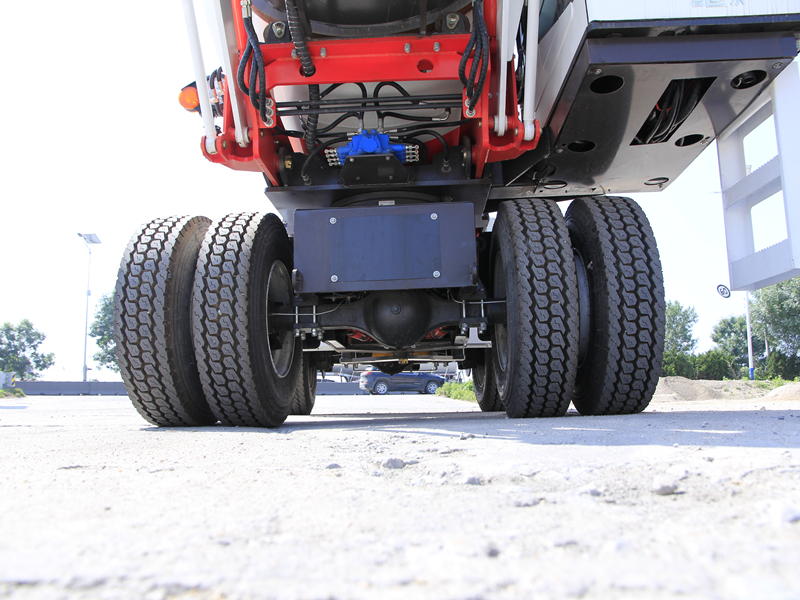

6. Self loading concrete mixers adopt 4x4 driving system and off road tires which enable good pass-ability on rough terrains, thus it is widely used in various projects.

7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete. Its capacity is up to 200 cbm per day.

8. Low cost. The truck automatically fulfill loading, mixing and unloading, replacing the labor of 4-6 workers.

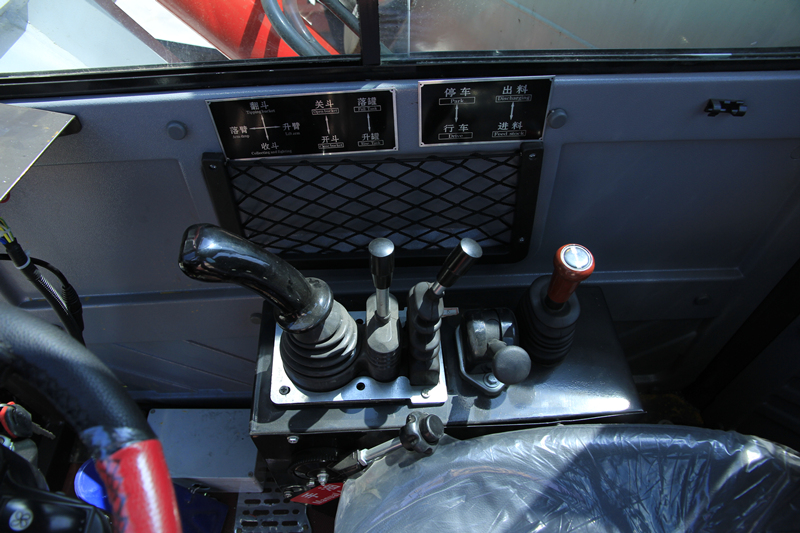

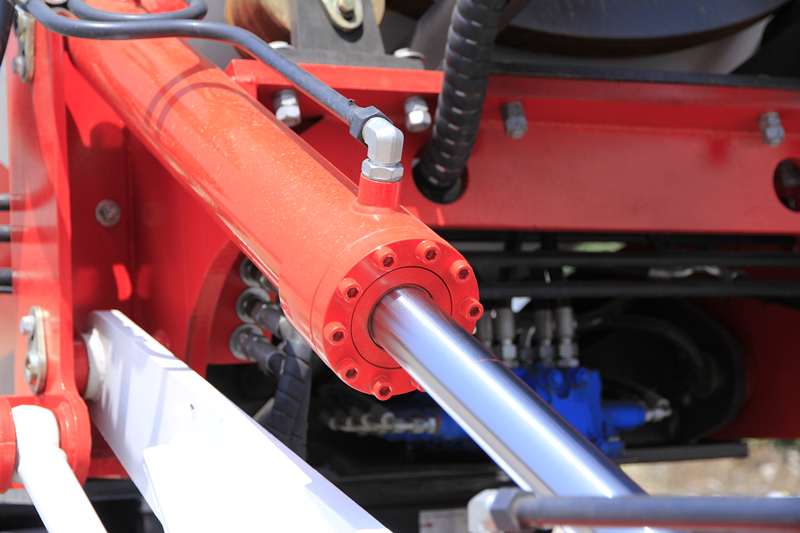

9. Easy operation. The extensive use of hydraulic system makes it easy to operate.

10. Our brand is named chinese famous brand.

11. We have already produced the self loading concrete mixers for more than 20 years.

12. Our factory is the biggest manufacturer of self loading concrete truck in China.

13. We have 17 patents for our self propelled concrete mixer.

14. Two way driving.Technical Parameters.jpg

Mode No.: LZ3200

Size: 5300x2350x2950mm

Wheelbase: 2300mm

Weight: 7500kg

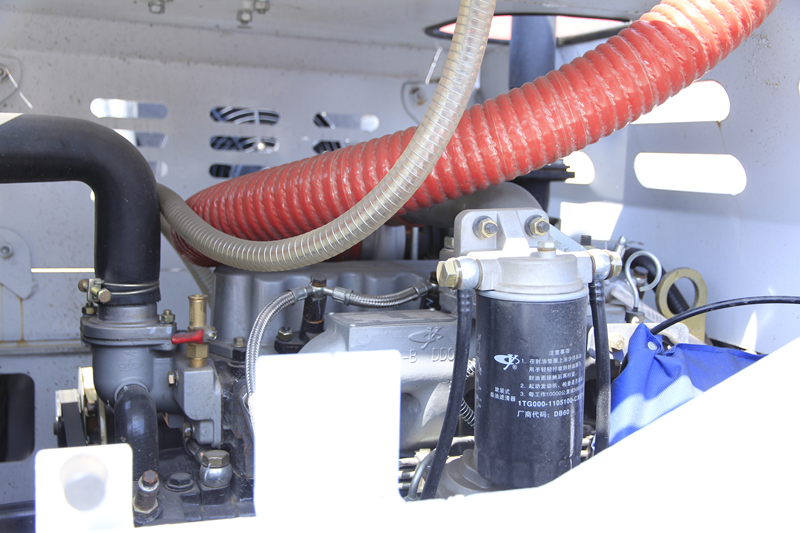

Engine: Yudong 4102, supercharged

Power (KW): 78

Gearbox: 280 integral

Drive axle: 2.0T wheel side reduction speed bridge

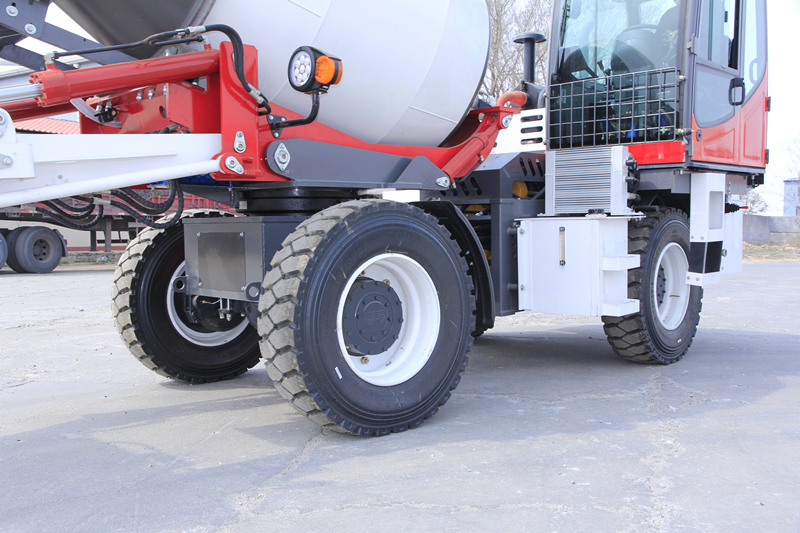

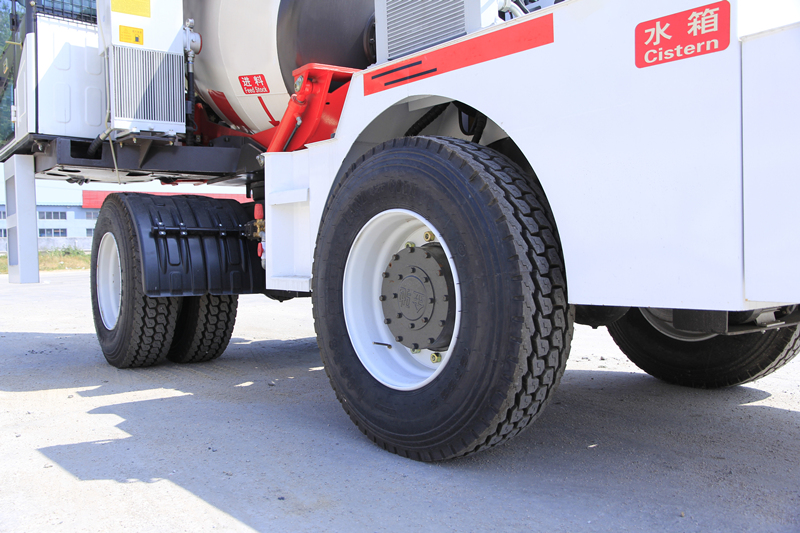

Tyre: 16/70-R22.5

Bucket capacity: 0.5m3

Mixing drum capacity: 3.2m3

Discharge capacity: 2m3

Reduction ratio: 1:24

Rotation speed: ≥15 rpm

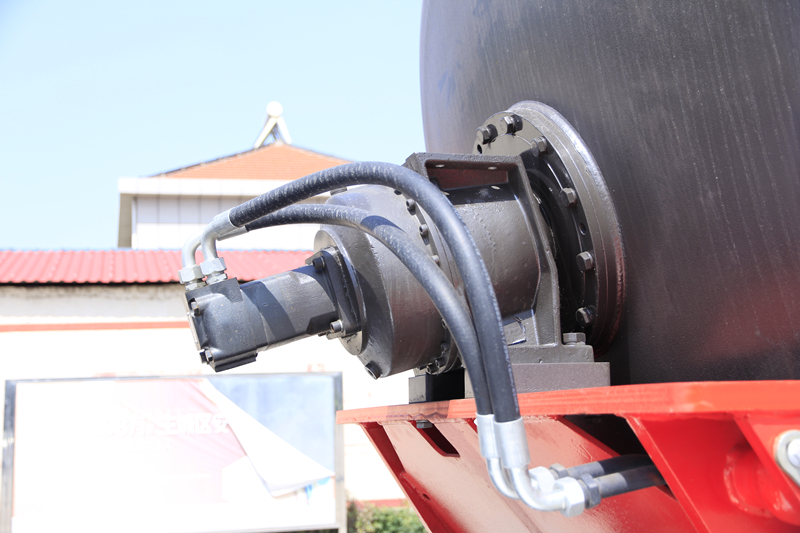

Reducer: made in China

Optional equipment:

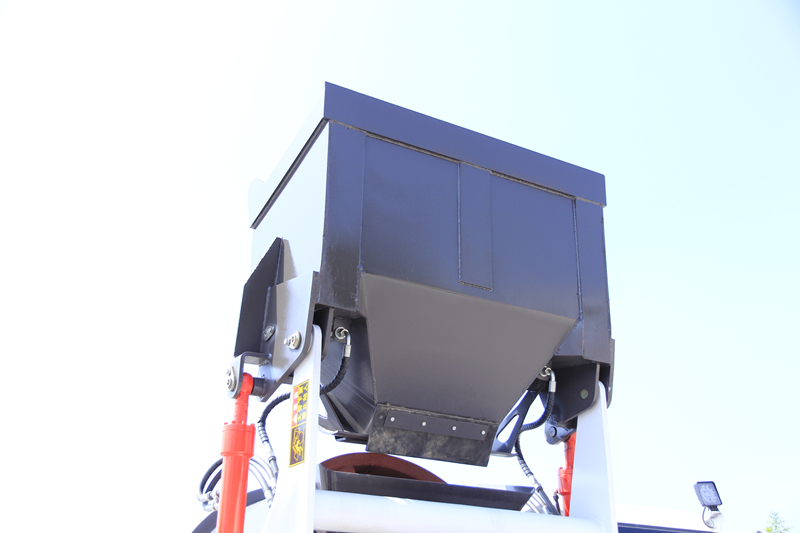

1.Cement hopper

2.Air conditioner.

3.High  pressure car wash

4.Hydrualic electronic scale
































tour our factory.jpg

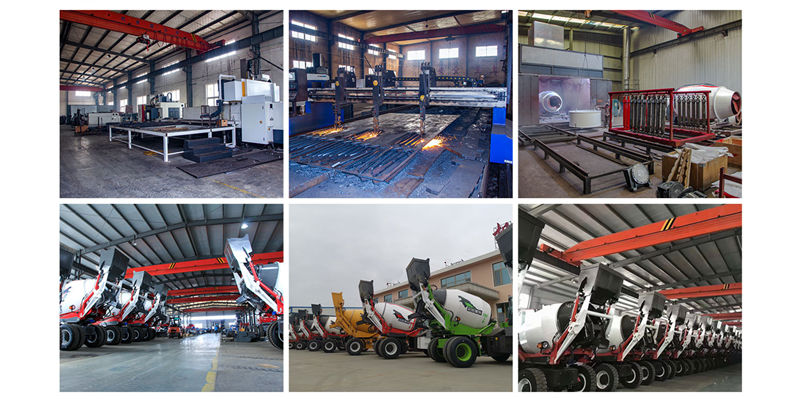

self loading concrete mixer workshops.jpg
