16Ft Off Road Caravan (3 Berth)

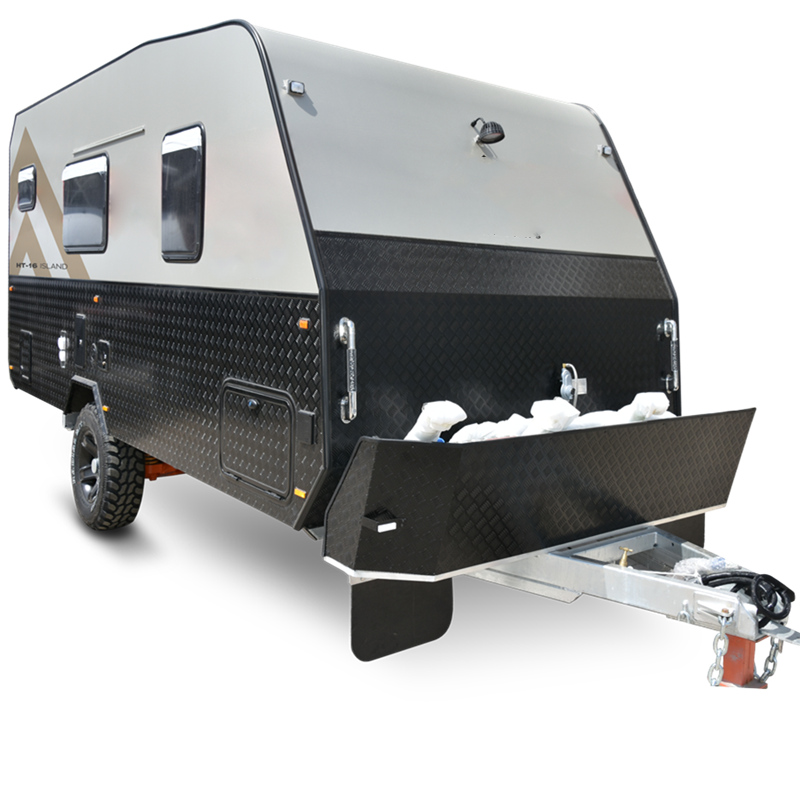

HT16 Island 16ft 3 Berth Hard-Top Off-Road Caravan

LZM is an experienced off-road caravan manufacturer and exporter in China, supplying caravans to international markets including Australia, New Zealand and the United States. Our factory manufactures more than 3,000 off-road caravans annually for these markets.

The HT16 Island is a 16ft hard-top off-road caravan designed for touring, camping and off-grid travel. This 3-berth caravan combines a fixed hard-top body, independent trailing-arm suspension, an internal ensuite, indoor and outdoor kitchens, 200Ah AGM battery capacity, 300W solar power and off-road capability.

Model: HT16 Island

Dimensions & Weight

• Closed Size with AC: 2350mm W × 6785mm L × 3000mm H

• Opened Size with AC: 5400mm W × 6785mm L × 3000mm H

• Style: 16ft Hard-Top Off-Road Caravan

• Berth: 3

• Towball Weight: Approx. 208kg

• Tare Weight: Approx. 2320kg

• ATM: 3000kg

Chassis, Suspension & Towing

• Chassis: Galvanised inside and out, 70mm × 50mm × 2.5mm / 50mm × 50mm × 2.5mm welded together

• Drawbar: Galvanised inside and out, 120mm × 50mm × 4mm

• Body Construction: Aluminium composite panels with fully welded frame and chassis

• Finish: Galvanised chassis with aluminium composite panels

• Stone Guard: Aluminium and mesh

• Suspension: Independent trailing-arm suspension with 4 shock absorbers

• Wheels & Tyres: 265/75 R16 Goodride radial mud-terrain tyres

• Coupling: DO35

• Brakes: 12-inch electric brakes with handbrake and breakaway system

• Jockey Wheel: 10-inch swing-up and lockable

• Stabiliser Legs: 4 heavy-duty lockable and adjustable drop-down legs

• Light Connection Plug: 12-pin flat as standard; 7-pin round or 7-pin flat connection available

Kitchen, Water & Bathroom

• Internal Kitchen: Thetford oven and cooktop

• External Kitchen: 304-grade stainless steel kitchen with Smev 3-burner stove and sink with hot and cold water

• Fresh Water: 2 × 80L tanks, 160L total

• Grey Water: 80L tank

• Water Delivery: 12V electric pump

• Toilet / Ensuite: Dometic cassette toilet

• Gas Cylinder Holders: 2 × 9kg

• Jerry Can Holders: 2 × 20L

Electrical & Off-Grid Equipment

• Battery: 2 × 100Ah AGM 12V deep-cycle batteries, 200Ah total

• Solar: 2 × 150W solar panels, 300W total

• Charger: Projecta 35A 7-stage fully automatic 240V charger

• Booster Charger: Projecta IDC 25-9-32V 25A 3-stage charger

• Inverter: Projecta 1000W modified sine-wave 240V inverter

• Outlets: 240V, multiple 12V and USB outlets

Interior & Exterior Equipment

• Awning: 4m electric awning

• Mattress: 200mm custom Queen innerspring mattress

• Sound System: Kenwood head unit with internal and external speakers

• Optional Equipment: Air conditioner, refrigerator and diesel heater

Weight Note: All stated weights exclude gas bottles, jerry cans and annex walls.

Looking for More Photos, Videos or Specifications?

For more high-resolution photos, factory videos, floor plans and specifications of the HT16 Island 16ft Hard-Top Off-Road Caravan and other LZM off-road caravan models, please contact us:

Email: [email protected]
WhatsApp: +86 186 6381 3961
